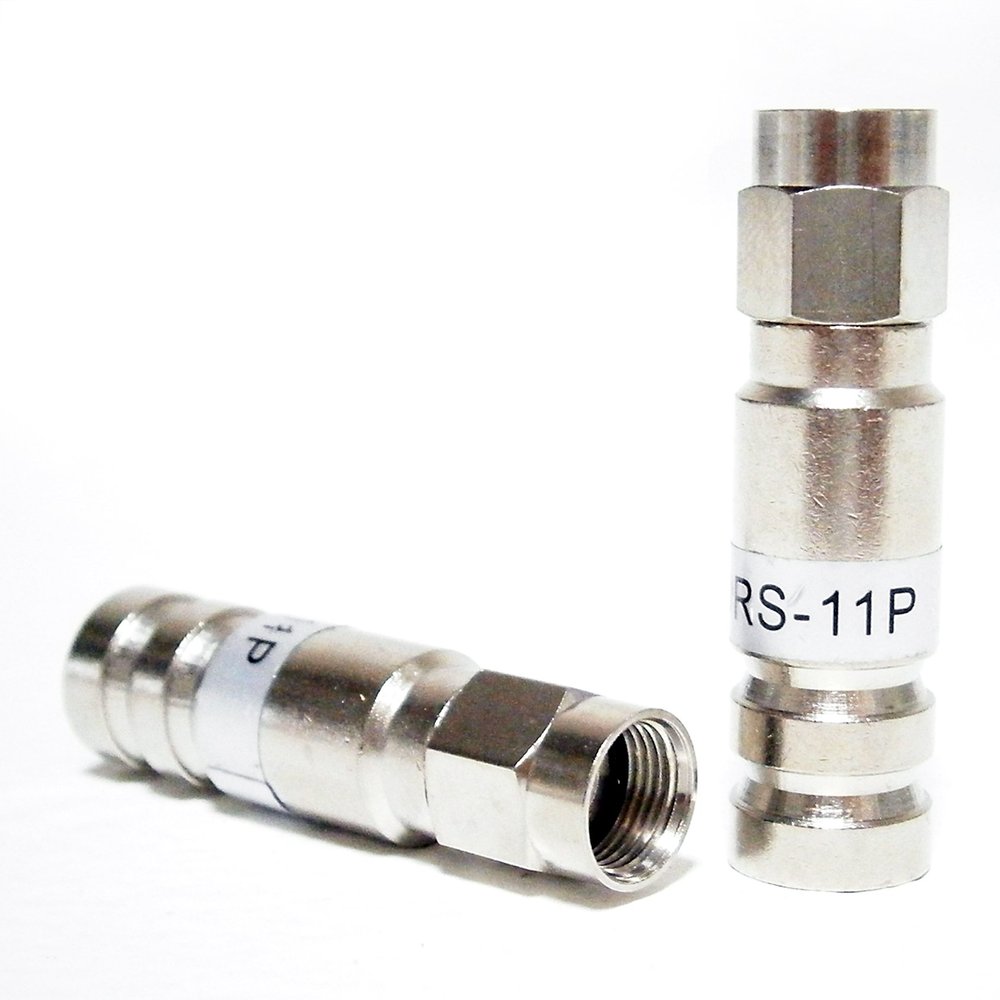

100 Pieces PCT-TRS-11P Universal RG11 Plenum Compression Connector Nickel Plated Brass Construction

Description

• Plenum Compression Connector for RG11 Plenum Coaxial Cables
• One piece all metal design. Nickel Plated Brass Construction
• PCT-TRS-11P - RG11 Plenum Cable 3x shields
• Usage: HD Over the Air Antenna - DirecTV / Dish Network, and Other Satellite Usage Approve - Ham Radio, Short Wave Antenna Usage - Cable Modem Internet - HD Digital Cable TV - Cellular Boost Antenna - Speed Sensor
• Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL

The PCT TRS-11P coaxial cable connector works with RG11 coax cable. It features locking mechanism to retian torque for the longest lasting connections.These connectors are used for easy "F" type terminations in many different coaxial applications including coaxial jumper cables used for antenna, cable, and satellite tv installations. In addition to the torque retaining features, PCT connectors also offer superior sealing protection through dual compression rings and dual O-rings. Our specially designed post allows the O-ring, located in the face of the connector, to seat inside a small chamber allowing a true metal-to-metal contact with both the post and the face of the port. Typically, most moisture enters through the threads of a connector. Our dual O-ring design eliminates the need for an additional weather seal. PCT is one of the few manufactures that maintains a high pass rate on the SCTE IPS moisture migration test without the use of weather boots during testing. Features plenum compression connector Series 11 (RG11) for plenum coaxial cable One piece all metal design Nickel plated brass construction Patented dual 360 compression rings Equipped with PCT's patented locking mechanism for increased torque retention General Specifications Bandwidth: 5 MHz to 3 GHz Impedance: 75 Ohms (nominal) Return Loss: Minimum -30 dB to 1 GHz Shielding Effectiveness: > -100 dB to 1 GHz Insertion Loss 0.2 dB to 1 GHz Operating Voltage: 90 V (at 60 Hz continuous AC) Operating Temperature: -40 to +140 F Cable Range: RG11 Series Plenum Cable 3x shields Cable Retention: > 40 lb (18.14kg), Ambient Temperature Construction Material: Nickel Plated Brass Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
