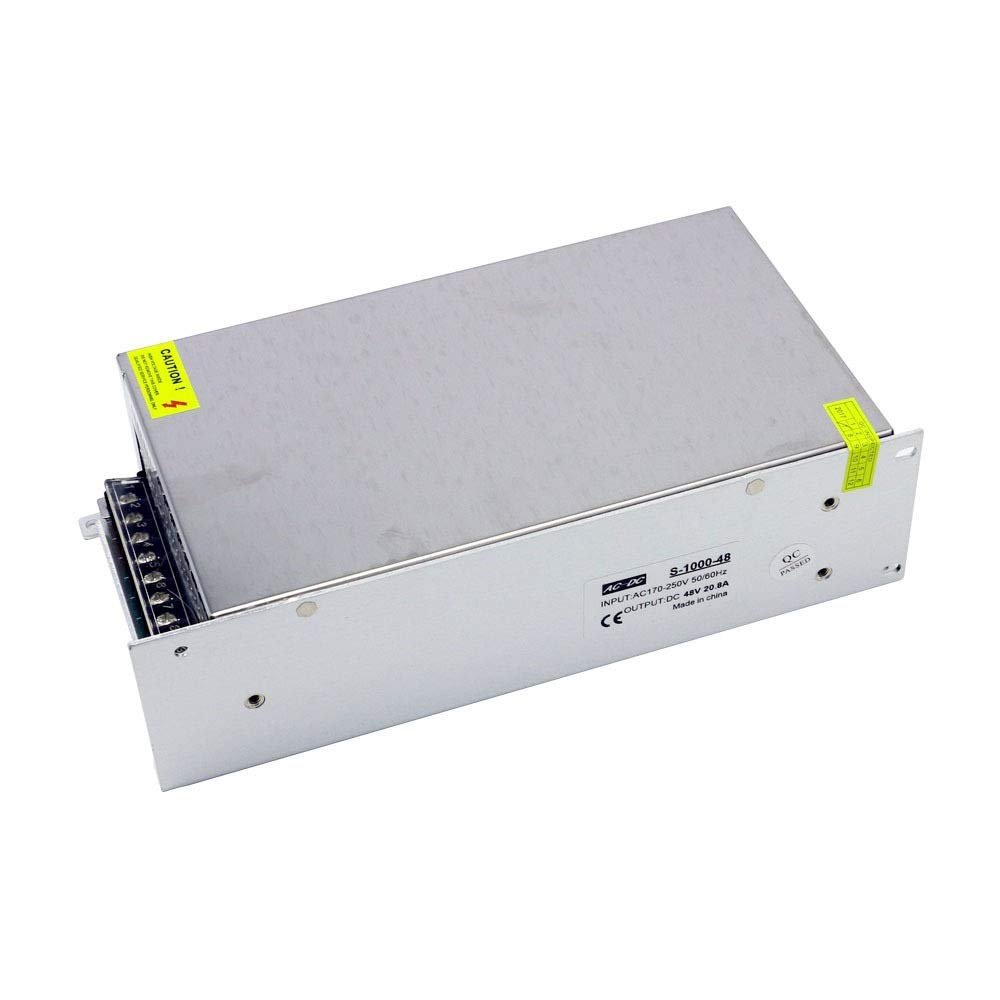

1000W High Power AC to DC Source Power 48V 20.8A LED Driver Constant Voltage Switching Power Supply (Input Voltage : AC170 250V, Output Voltage : 48V)

Description

• 1.High efficiency, long life and high reliabili
• 2.Low dc ripple, high efficiency
• 3.low operation temperature &longperformancelife
• 4.input voltage suitable for ac170~250V
• 5.Excellent insulation property, high dielectric strength

1000W High Power Dc 48V 20.8A Motor Driver Constant Voltage Power Supply
1.High efficiency, long life and high reliabili
2.Low dc ripple, high efficiency
3.low operation temperature &longperformancelife
4.input voltage suitable for ac170~250V
5.Excellent insulation property, high dielectric strength
6.100% full-load burning test
7.2 years warranty
Model
S-1000-48

Input
AC input voltage range(V)
AC 170~250V

AC Input current(max)
18.2A /AC220V;

Frequency (Hz)
50/60Hz

Efficiency
82% Typ(230VACFull Load)

Inrush current(A)
Cold-start 20A/230V

Leakage current(mA)
115%-135% Rated output voltage

Over load Protection
>105%-150% Auto recovery

Short circuit Protection
Latched

Others
Size L*W*H(cm)
242*124*65mm

Weight
1250g
