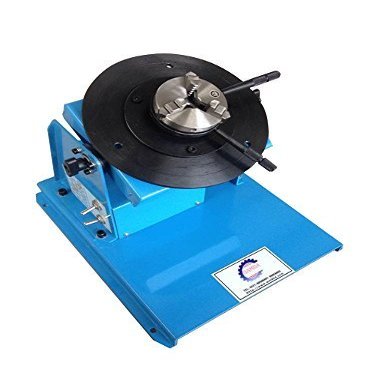

10KG Light Duty Automatic Welding Positioner with 65mm 3-jaw Chuck 220V 2-16RPM

Description

• The rotation structure is driven by name-brand DC motor, while stepless speed regulation can be achieved
• The tile range of rotary table is 0~90, worker can set the shaft, so the welding at arbitrary angle can be achieved. Special design of anti-electromagnetic, which reduce the high frequency interference of TIGS welding, at the same time can improve the welding quality effectively. A time- controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
• The adjustable-welding gun support can be furnished to fix the position of the welding torch.
• The welding chuck and air-powered tailstack can be furnished to achieve the function of self holding to the workpiece.
• NOTE: IT IS 220V.

Specification:
Power Input: AC220-240V / 50-60hz
Capacity (horizontal vertical):10kg/5kg
Rotary table diameter:180mm

Rotary table height:220mm
Chuck Size: 65mm
Rotary speed:2~16rpm
Tilt mode: manual
Angle of inclination: 0~90
Rotary motor: 20W
Overall dimension: 370*270*240mm
Main characteristics and advantage of our welding positioner:
1.The rotation structure is driven by Dc motor, while stepless speed regulation can be achieved.;
2.The turning structureof worm and gear has the function of self-lock,and the worktablecan be turned steplessly between 0-90 ;
3.Special design of anti-electromagnetic, which reduce the hign frequency interference of TIGs welding, and can improve the welding quality effectively;
4.A self-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder;
5.The adjustable- welding gun support can be furnished to fix the position of the welding torch; .
6.The track and air-powered tip can be furnished to achieve the function of self holding to the workpiece
