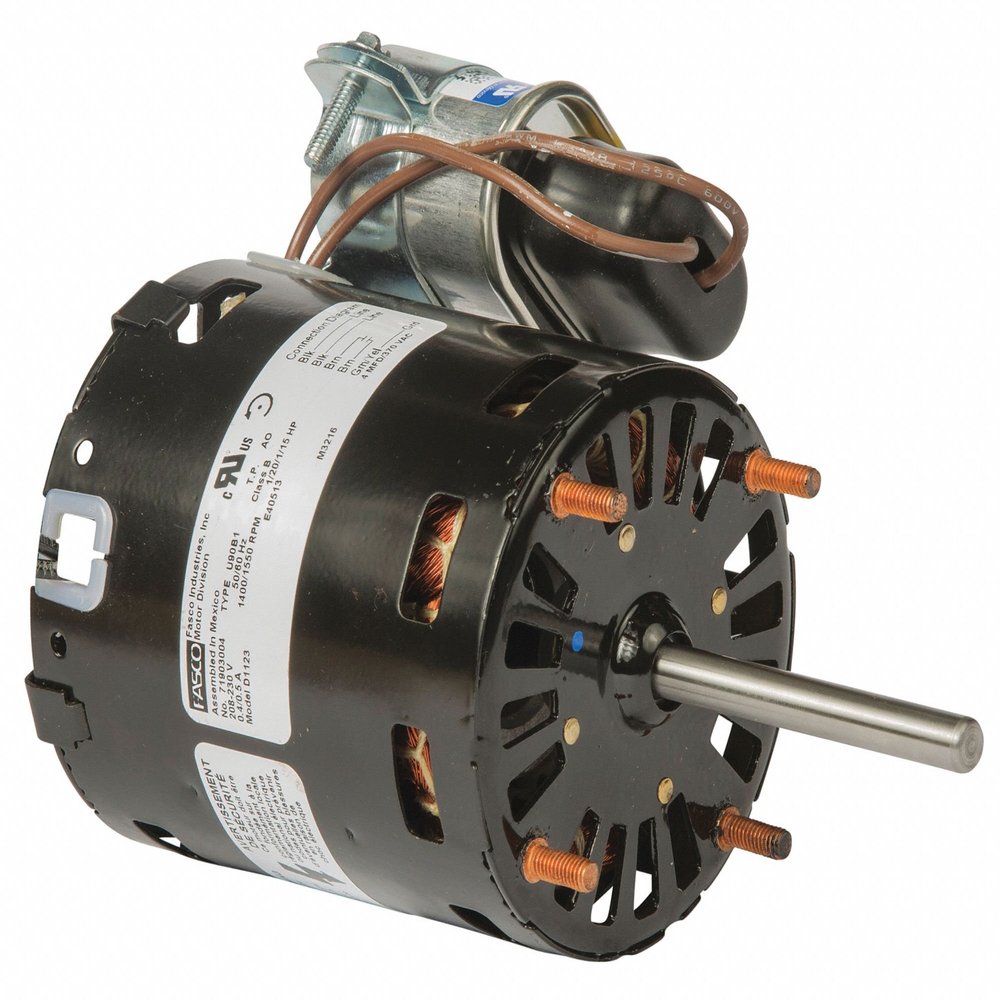

1/20, 1/15 HP Condenser Fan Motor, Permanent Split Capacitor, 1550/1400 Nameplate RPM, 208-230 Volta

Description

Specifications:

Item: Condenser Fan Motor
Motor Application: OEM Replacement
Motor Sub Application: Condenser Fan
Motor Design: Permanent Split Capacitor
Motor Enclosure Design: Open Air-Over
HP: 1/20, 1/15
Nameplate RPM: 1550/1400
Voltage: 208-230
Full Load Amps: 0.40/0.50
Frame: Non-Standard
Motor Service Factor: 1.00
Hz: 60/50
Motor Mounting Type: Stud
Motor Bearings: Sleeve
Motor Thermal Protection: Auto
Motor Shaft Rotation: CCWSE
Ins. Class: B
Max. Ambient Temp.: 40 Degrees C
No. of Speeds: 1
Phase: 1
Shaft Dia.: 5/16"
Motor Shaft Design: Flat
Shaft Length: 2-9/16"
Body Dia.: 3-19/64"
Length Less Shaft: 3-3/4"
Overall Length: 6-5/16"
Bolt Circle Dia.: 2-13/16"
Mounting Stud Pattern: 4" x 4"
Stud Size: 10-32 X 1/2"
Capacitor Required: Included
Replacement For: 25309101
Application: Fans and Blowers
RPM Range: 1301-1400"
