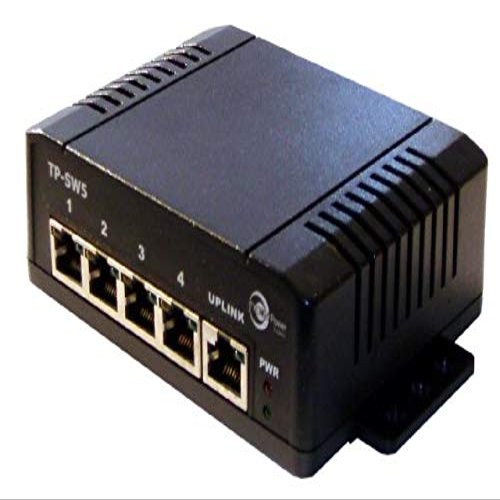

12-57V 5 Port High Power Passive POE 10/100BASET Unmanaged Switch. Max 2A per Port, PoE Pinout: 4,5V+; 7,8V-, 4 PoE Ports/1 Uplink Port, Incl DIN Rail Mt Kit, AutoCrossover, Ind Strength

Description

• 5 Port Passive PoE Unmanaged Switch, 12-57VDC Wire Terminal Input
• PoE Pinout: 4,5V+; 7,8V-, Shielded
• PoE out = Voltage In, 2A max per port
• 10/100 Speed, AutoCrossover, Includes DIN Rail Mounting Kit
• Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems

The SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port. TP-SSW5-NC: Universal Voltage 10/100 PoE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4x5x1.5. 2A per port. On the universal voltage models (-NC) the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device. Tycon Power sells a variety of power supplies in 60W, 120W and 180W sizes. 18VDC, 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting.
