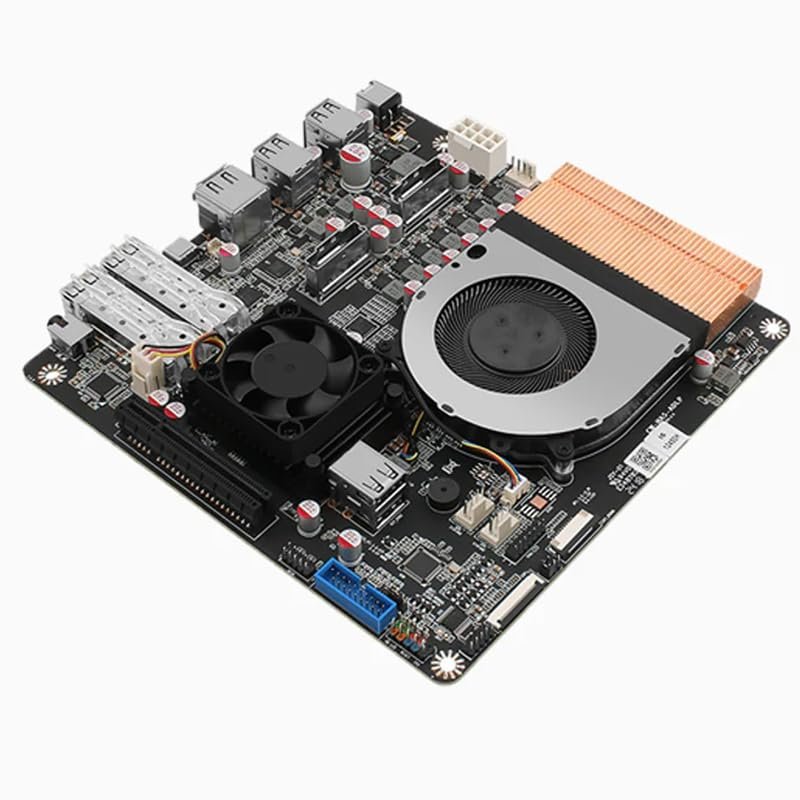

12th Generation i5-12405H 10G Full Flash 4M2 4U2 NAS Board (i5-12450H+SFF-8654 * 2 4*U.2 NVMe)

Description

• Motherboard Features Matte black PCB High density moisture-free fiber 10-layer circuit boaro Full protection (supports all USB, audio, and network interfaces)
• Processor Intel 12th Pentium Gold processor 8505 5 cores 6 threads,Intel 12 Core i5-12450H processor 8 cores 12 threads,Intel 12 Core i5-1240P processor 12 cores 16 threads,Intel13 core i3-1315U processor 6 cores 8 threads,Intel 13 Core i5--1335U processor 10 cores 12 threads,Intel 13-core TMi7-1355U processor 10 cores 12 threads,Intel 13 processor U300e 5 cores 6 threads
• Memory Support SO-DIMMDDR5 notebook memory technology,2*S0-DIMMDDR5 laptop memory slots,DDR5-4800MHz compatible with 5200/5600MHz (ECC not supported),Maximum capacity of a single memory stick: 48GB Maximum capacity of dual-channel: 96GB
• storage 2 SFF-8654 (8i) server-level high-speed transmission interfaces,SFF-8654 port 1PCle4.0x8 signal supports split signal,SFF-8654 port 2PCle3.0x8 signal supports split signal
• Network Card Intel82599ES chip dual 10G SFP+ optical ports
• Display 1 *HDMI2.0 supports 4K@60Hz,1 *DP supports 4K@60Hz,1*Type-C Gen2 x2 (USB4) rate 20G support 4K@60HZ,1*eDP port supports 4K@60Hz
• Power supplymode 1*DC12-24V/SFX/ATX-8Pin 12V
• OnboardInterface 2*SFF-8654 interface,1*10G NIC cooling fan,1*motherboard battery holder,1*PCI-E4.0x8 slot,-1*8Pin power supply socket (can supply power to the backplane),1*small 4pin system fan power supply socket,1*Pure copper fins and double copper tube CPU radiator,1*TPM pin header,2*USB2.0 connector,1*GPl0 pin header,1*USB3.0 female connector,1*diagnostic light socket,2*4Pin system fan power supply socket,1*eDP socket,1*COM pin header,2*SO-DIMM DDR5,1*TF slot

Based on intel 12th generation Alder Lake/13th generation Raptor Lake PinTOPin compatible platform 17cmx17cm standard iTX form factor, can be installed on standard iTX/ATX/M-ATX NAS chassis 2 SFF-8654(8i) ports,1 Gen4x8 and 1 Gen3x8 signal 2 SFP+10G dual 10,000 optical ports intel82599ES chip ,2 dual-channel SO-DlMM DDR5 memory slots on the back, support up to 96GB 1Type-CGen2x220G(USB4)supports 4K@60Hz display HDMl+DP+eDP+Type-( quad display supports synchronous/asynchronous display and supports 4K@60H 1 PC|-E x8 slot Pcle4.0x8 signal, can be plugged in graphics card/network card and other application card. DC12-24V, Dc head can be powered by CoLay aviation head, SFX/ATX-8Pin power supply design Onboard 1 UsB3.0 female socket supports wiring to the panel Onboard 1 TF slot and 2 USB2.0 ports both support partial system booting
