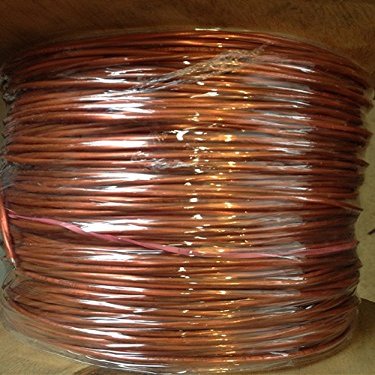

24/2 Stranded Shielded Plenum, High Temperature Cable, FEP/FEP CMP 1x500ft

Description

"# Conductors: 2 Conductors, Paired
AWG: 24/Stranded (7x32 Tinned Copper)
Insulation type: FEP - Fluorinated Ethylene Propylene
Insulation Thickness: .006""
Conductor Color Code: Orange/Purple
Shield Type: Overall Foil Shield with drain wire
Jacket type: FEP - Fluorinated Ethylene Propylene
Jacket Color: Translucent Red
Approvals: (UL), C(UL) CL2P/CMP, Plenum Rated
Jacket Diameter: 0.110"" Nominal
Operating Temperature: -70C To +200C
Capacitance Conductor to Conductor:
Capacitance (pF/ft) 31, Nominal
Capacitance Conductor to Shield:
Capacitance (pF/ft) 59. Nominal
Conductor DC Resistance:
DCR @ 20C (Ohm/1000 ft) 24
Voltage: 300 V RMS, Max

Similar to Belden 88641 except Color code.
"
