4 Axis CNC Nema23 Stepper Motor Kit USB Driver CNC Motion Controller

Description

• Features: 1. With latest bipolar constant current cut-wave driving tech. 2. With 12v external fan input port. 3. With limit switch input port. 4. With 2 relay output.
• 5. With Auto half-current function. 6. Maximum input pulse frequency upto 200KHz. 7. Supports 8 kinds of microsteps selection, maximum 128 microsteps. 8. With high speed optical coupler and DC/DC power isolation. 9. 4 axis motor current adjustable: 0.6A, 1.2A, 1.8A, 2.4A, 3.0A, 3.6A, 4.2A, 4.8A(peak current), totally 8 selections.
• 10. Standard LPT interface, supports softwares like MACH2, MACH3, KCAM4 etc. 11. With Spindle run/stop(M3 port) & GND output port(GND1), so that spindle inverter can be connected to the controller directly.
• 12. With VSO 0-10v speed adjustable output, software S order controls output voltage direclty, which makes easy connection to inverter directly.
• 13. Circuit wiring is completely followed Sanyo's standard layout, which makes super great performance on controlling stepper motors' running noise. 14. Mouting holes were set on the cooling fin aluminum board, easy for intergrating the driver on controlling box or machine body.

*** USB to Parallel Adapter:
Parallel to USB Adapter
Easy plug and play.
Works perfectly with Mach3, and doesn't require any complicated wiring.
Just plug it into the USB port on your computer, and then into your parallel port on your CNC controller!
Perfect solution for your parallel interface CNC machine/controller to work with your laptop!

Specification & features:
* Replaces the LPT port.
* Controls upto 6-axis simulteneously.
* Works with Mach3 software via plugin.
* Upto 200kHz operation.
* USB connection to the control PC.
* Same pinout as a standard LPT port.
* Fast communication with data buffer for robust and stabile operation.
* 5 ports input interface for ordinary digital data;
* 3 ports output interface for ordinary digital data;
* 1 port 0-10V spindle speed analog output interface(can change to PWM output);
* Support 4 axis stepper systems, 200KHz pulse output for every axis;
* ARM motion control chip;
* Compatible with MPG input(Note: this MPG input can only support the digital display MPG from our company, other brand's MPG not supported).

*** Nema 23 Stepper motor
1SWZ0070-8YYK-9
Step Angle Accuracy: +-5%(full step, no load)
Resistance Accuracy: +-10%- Inductance Accuracy: +-20%
Temperature Rise: 80 Degrees Celsius CMax.(ratod current,2 phase on)- Ambient Temperature: -10C-+50C
Insulation Class: B
Dielectric Strength: 500V AC for one minute
Shaft Radial Play: 0.06Max.(450g-load)
Shaft Axial Play: 0.08Max.(450 9-load)

Wiring Guide:
Black: A+
Green: A-
Red: B+
Blue: B-

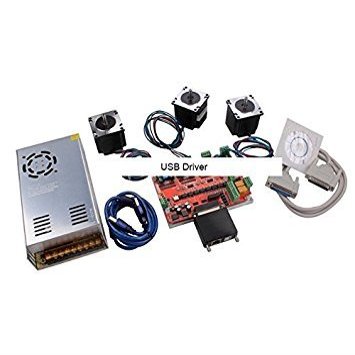

What is in box ?
3 x Nema23 Stepper Motor 57BYGH56-401A
1 x Stepper Motor Driver
1 x USB to Parallel Adapter
1 x 360W 24V 15A power supply
1 x USB Cable
1 x Parallel Port Cable
1 x Software&Manual CD
