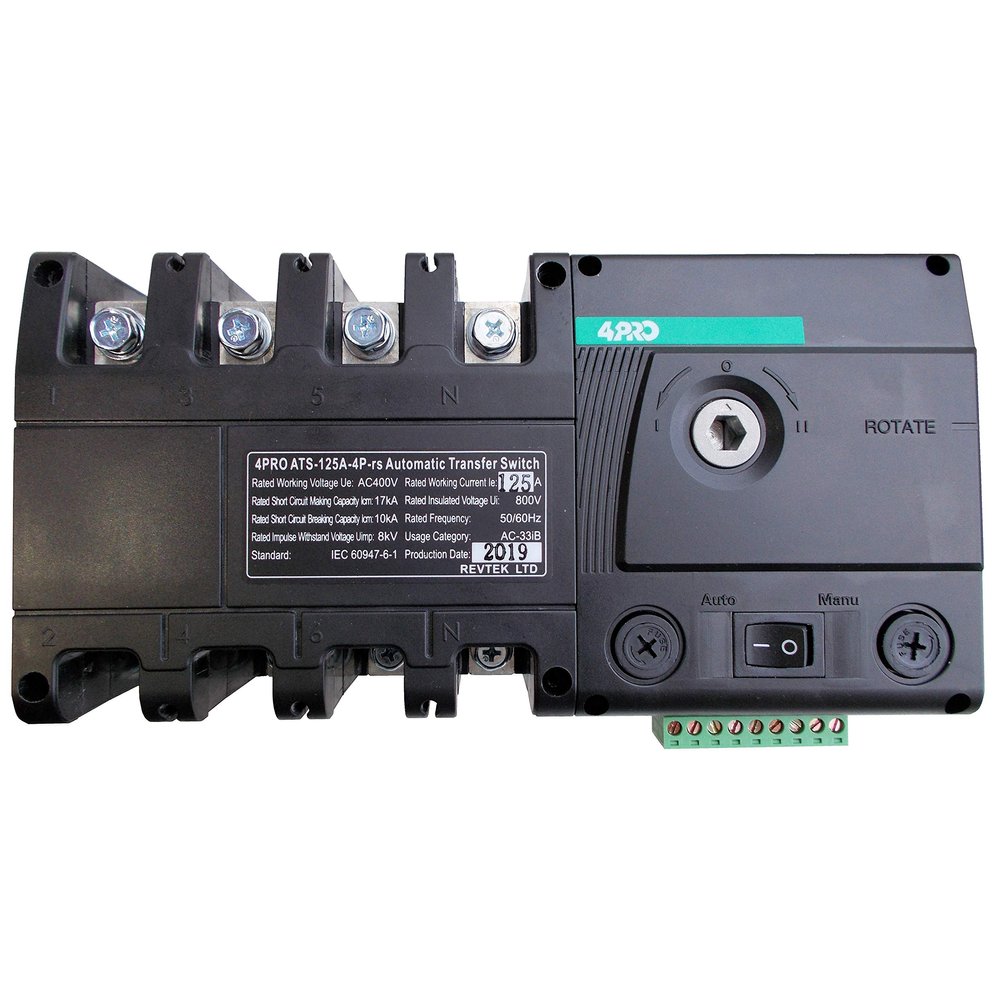

4PRO ATS-125A-4P-rs, 50/60Hz Automatic Changeover Transfer Switch

Description

• Generator remote start/stop outputs
• Suitable for 230V (1 phase), 230/400V(2-3 phase), 120/208V(3 phase), 120/240V (2 phase) 50/60Hz. source switching
• Automatic / Manual switching modes with an additional load disconnected position.
• External indicator connections. Built-in mechanical and electrical interlocking;

DESCRIPTION

The AT S-125A-rs changeover switch is designed to automatically transfer load circuits from main power source to reserve source in a wide variety of 1-3 phase applications.

FEATURES

- Electric motor gear activated switching;
- 1-3 phase 4 pole operation;
- Auto and Manual mode switch;
- 3 position switch handle(I-0-II);
- Generator start/stop remote control outputs;
- High reliability and low power consumption due to fixed positions of the change-over mechanism energized during switching process only;
- Front side position indication pointer and external lamp outputs;
- Control signal protection fuses;
- Built-in mechanical and electrical interlocking.

INPUTS AND OUTPUTS

- Normal source inputs: R, S, T, N;
- Reserve source inputs: R, S, T, N;
- Load cirquit outputs: R, S, T, N;
- External indication lamp outputs.

TECHNICAL SPECIFICATIONS

- Rated Operating Voltage: 230/400V(2-3 phase), 230V (1 phase), 120/208V(3 phase), 120/240V (2 phase).
- Voltage frequency: 50/60Hz.
- Switching poles: 4
- Rated operating current: up to 125 per device pole;
- Working temperature range: -5'C +40'C;
- Humidity: up to 95%;
- Installation type: vertical;
- Switching current: up to 0.5A;
- Switching time: 1-2 sec;
- Rated insulation voltage: 800V
- Rated impulse withstand voltage: 8kV
- Rated making capability: 10KA
- Rated short-time withstand currrent Ie 30ms:17KA
- Nominal control supply voltage: 230VAC
- Life switching cycles: up to 10000;
- Use category: AC-331B;
- Altitude: up to 2000 meters;
- Protection class: IP30
- Weight: 2.2 kg.
