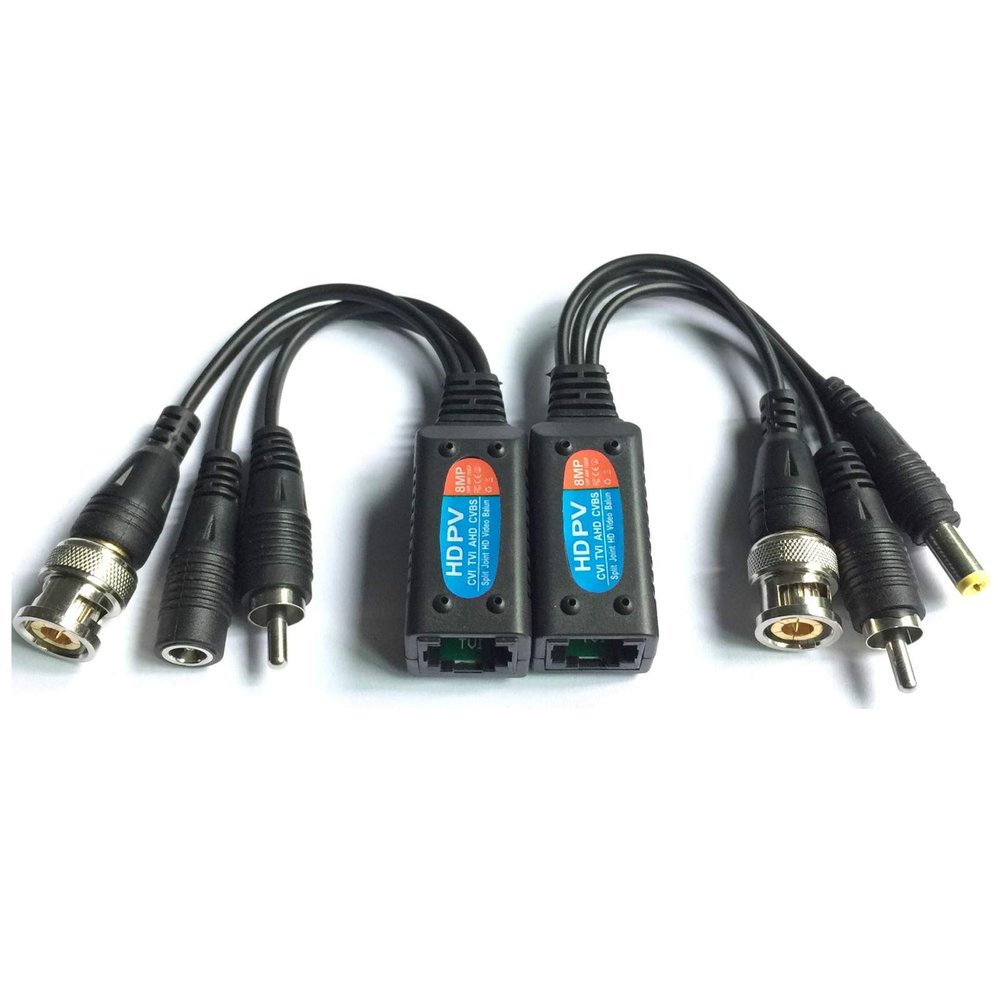

50 Pairs Evertech 8mp HD-CVI/TVI/AHD Passive Video Balun with Power Connector and RJ45 CAT5 Data Transmitter BNC Twisted Pair

Description

• Compatible With 8 Megapixel, 5MP, 4MP, 3MP, 2MP, 1080p, 720p AHD, TVI, CVI and Analog CCTV Security Cameras
• Supports 8 MP CVI/AHD/TVI cameras in 200M(Max). Gold Plated BNC is provided with better transmission quality and long distance HD transmiter.
• Transmission distance: 8mp-5mp-3mp-1080p AHD/ TVI/CVI 656 ft(200 m), 960p - 720p AHD/ TVI/CVI 820 ft (250 m), Analog/CVBS/960H 1000 ft(300 m)
• Analog clear video and audio signal, Anti-interference, simultaneously transmit the frequency signal, DC power and audio signal.

Package include: 2x mini BNC Video Balun Per package. Specifications *Frequency response: DC to 8MHz *Attenuation: 0.5dB typ *CMRR: 60dB *Impedance: BNC : 75 ohms, Terminal: 100ohms *Working Temperature: -10degree to + 70degree C *Storage Temperature: -30degree to + 70degree C *Humidity: 0 to 95% *Dimension: 45mm*25mm*21 with 14cm cablemm *Material: ABS Plastic Feathers: * Power-Video-Audio/Data signals are routed via UTP and RJ45. The unit is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted Pair (UTP) telepgone wire. *Built-in transient suppression protection *Save cable cost 30%-50% *NTSC, PAL and SRCAM video formats *60 dB crosstalk and noise immunity *Compact size and easy installation Please contact us regarding wholesale/large quantity orders.
