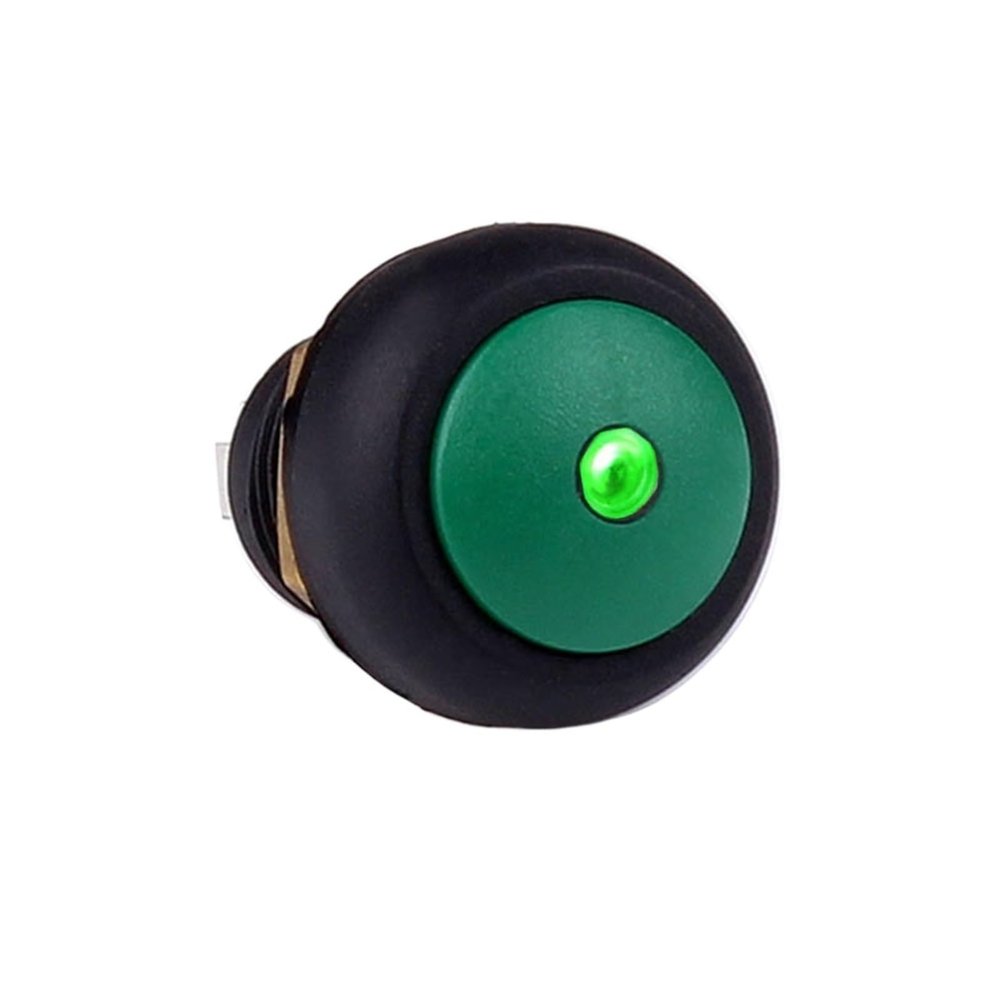

5pcs 12mm Self-Locking Latching Mechanical Switch 2.4V 6V 12V 24V Dot Led Start 12mm Waterproof Switch(Green,MOMENTARY_LED Voltage 2.4V)

Description

• Switches
• 5pcs 12mm Self-locking Latching mechanical switch 2.4V 6V 12V 24V Dot Led Start 12mm Waterproof Switch

Switches
12mm Domed Head Momentary and Latching Normal Open with 12V DOT Led Care Pushbutton Switch
A4126 series waterproof push button switch , protection degree IP67 ,installation size is 12mm. According to the material , it has metal push button switch and plastic push button switch . All the switches has self-locking and momentary two different kinds . If equip with LED light , colour can be customised based on the customer's request . It widely used in beauty equipment , small yacht, lamps, , military communication intelligent network equipment and the other instruments .
Function
Momentary: Means that when you push switch and then move your finger, the actuator will back to the position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to position unless you push it again.
The blue, green, yellow, red, white head's switch led color is same with the switch head
Note
Resistor not inside ,should soldering resistor outside when operation.
LED voltage 2.4V does not need the outside resistor
Technical Paremeters
1. Operating force 6Nf, best range is 5Nf~6Nf , Maximum endurance 5kgf
2. Contact resistance 50m
3. Rated current 3A , rated voltage 250VAC
4. Insulation resistance 100m /min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 3405/1-2s
7. Solder resistance: soldering iron 3405/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10 Material: Nylon PA66+20% glass fiber
11. Installation size: 12mmr
==========
Current : 3A
Material : Plastic
Switch Type : Push Button Switch
Model Number : 400
Features : waterproof
Item Type : SWITCHES
Is Smart Device : No
Color : Blue,red,black,yellow,white,green
Function : Momentary and latching normal open
Front material : Plastic
Size : 12mm
