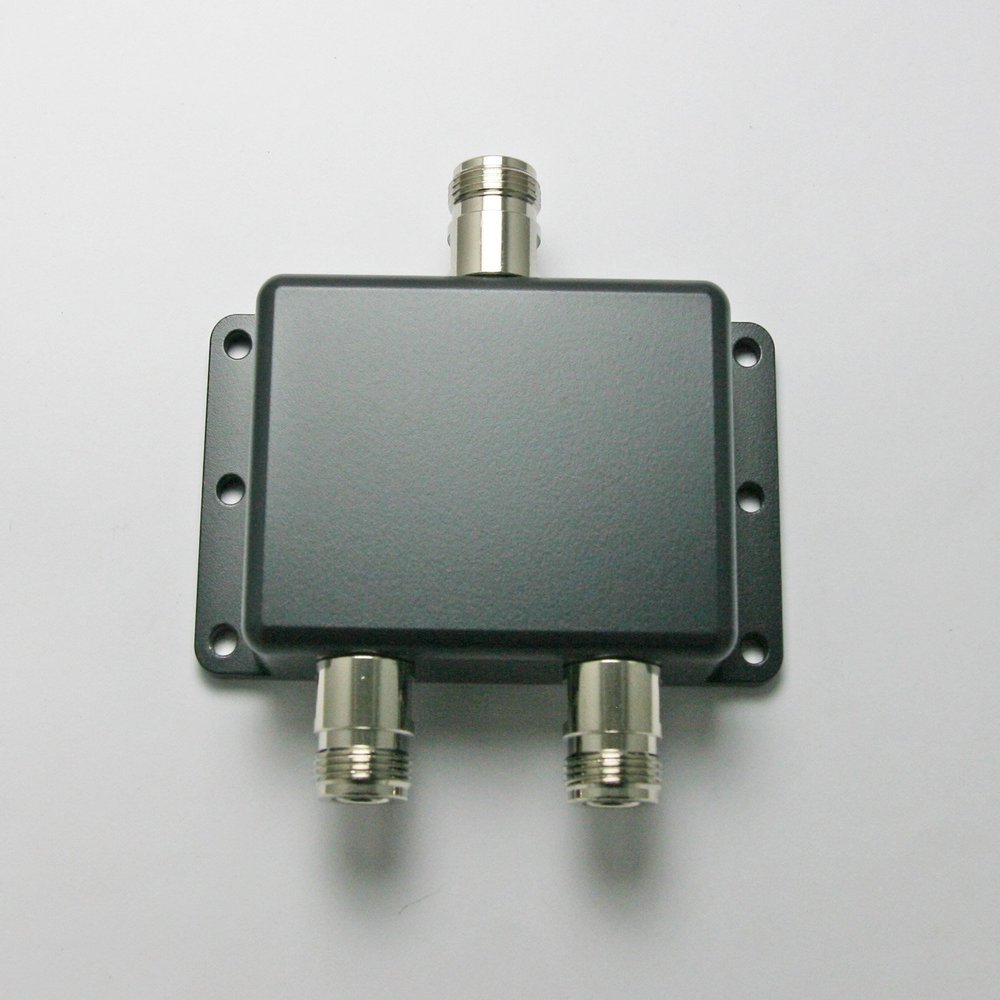

AEC PD-1002S-NS25TA-NS25TA, N-Type 50 ohm Female, Power Splitter

Description

• Frequency Range : 698~2700MHz
• Broadband application for LTE, UMTS/WCDMA, TD-SCDMA, AMPS, GSM, PCS, WiFi/WLAN 2.4GHz and so on
• Impedance : 50 ohm
• Insertion Loss : 0.3dB max. (above 3dB split)
• Isolation : 20dB min.

Material:
N type Body: Brass
N type Contact Pin: Brass
N type Insulator: PTFE
Shell: Aluminum

Finished:
N type Body: Nickel Plated
N type Contact Pin: Gold Plated
Shell: Sandblast Black Coated

Electrical Characteristics:
Wideband coverage: 698 to 2700MHz
Impedance: 50 ohm
Insertion Loss: 0.3dB max. (above 3dB split)
Input VSWR: 1.25 max.
Output VSWR: 1.2 max.
Isolation: 20dB min.

Product Dimension:
Length: 95.8mm
Width: 94mm
High: 25mm
Weight: 326g

Packing:
Zip Bag(1Pc/1Set)
