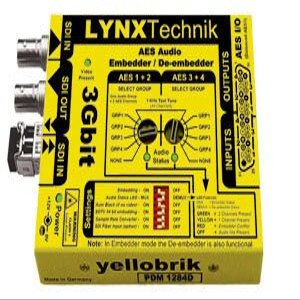

AES audio Embedder/De-embedder (balanced AES) (PDM 1284 D)

Description

• Yellobrik AES audio Embedder / De-embedder for simultaneous embedding and de-embedding. Supports all SDI formats. 4 x AES inputs / outputs and an optional fiber I/O.

AES audio embedder and de-embedder designed for a wide range of SDI video formats up to 3Gbit. It supports balanced AES3 audio I/O using a 25 pin SubD connector. Features : Simultaneous embedding and de-embedding SDI video formats up to 3Gbit (1080p60) 4 x AES inputs / outputs Selectable audio groups Optional Fiber I/O Integrated 1 kHz test tone generator Automatic PCM / encoded audio detection Auto black if no video present Selectable SDTV 24 bit mode Video present and audio status LEDs The PDM 1284 D is a versatile AES audio embedder and de-embedder designed for a wide range of SDI video formats up to 3Gbit.WHAT YOU GET: PDM 1284 D - AES Audio Embedder / De-embedder (balanced AES) Includes: 1 x PDM 1284 D Module Power Supply SubD to Screw Terminal Adapter PCB Mounting Brackets Plastic Transport Case 3 year warranty FIBER OPTIONS: (Add option to your cart above) Fiber Transmitter Options (TX)OH-TX-1-LC: Optical Transmitter SFP Module - 10Km - 1310nm - Fiber LC connectorsOH-TX-1-SC: Optical Transmitter SFP Module - 10Km - 1310nm - Fiber SC connectorsOH-TX-1-ST: Optical Transmitter SFP Module - 10Km - 1310nm - Fiber ST connectorsOH-TX-0-850-MM: Optical Transmitter SFP Module Multimode 850nm - Fiber LC connectorsOH-TX-3-1550: Optical Transmitter SFP Module. Cable length 1.8m XLR-1000: 4 Pin XLR Camera Battery Adapter Cable This option allows the yellobrik to be powered from a camera battery with a standard 4 pin XLR power connection. Cable length 1.8m.
