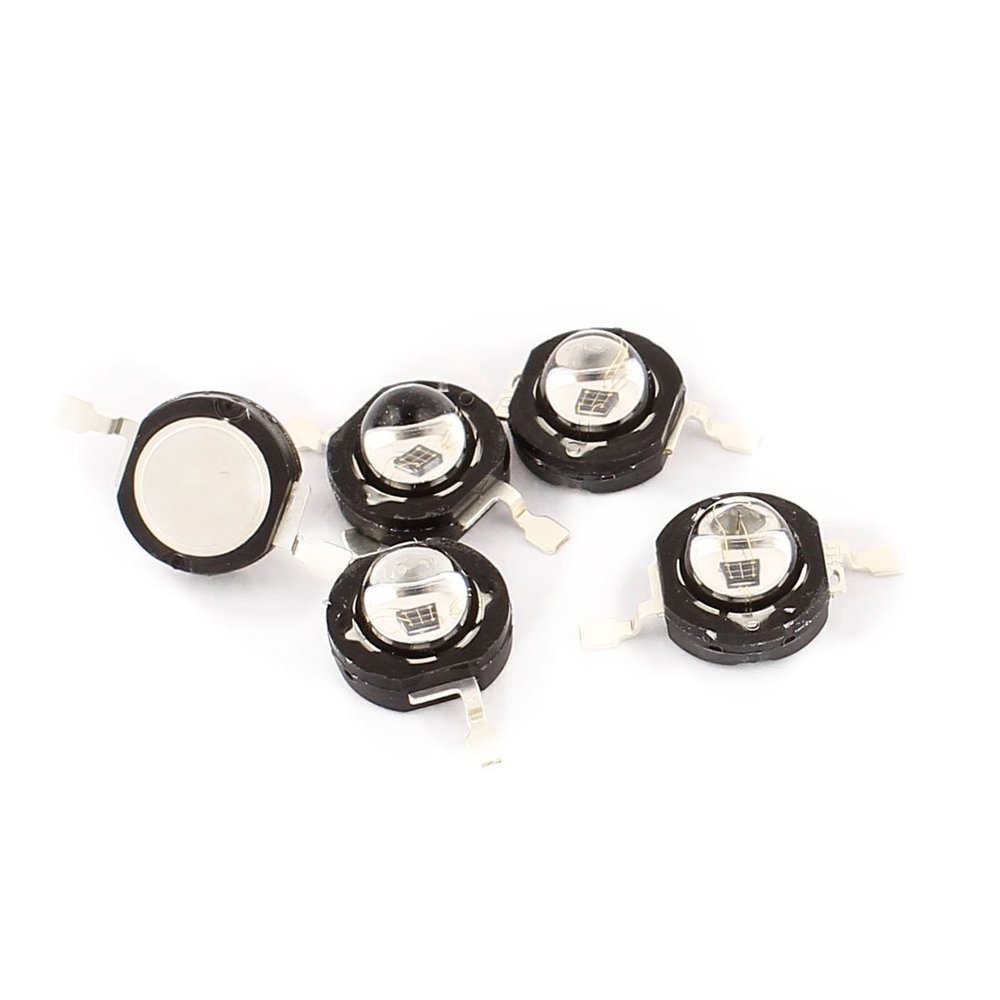

Aexit 5 Pcs High Power 940 Nano IR Infrared LED Diode SD-DR4001C9 For CCTV Camera (07101ab6a4790715332ddcdaeed3b5ef)

Description

• Country of Manufacture: CHINA; Material: Resin; Net Weight: 7g
• Package Content: 20 Pcs x IR Infrared LED Diode; Model: SD-DR4001C9
• Main Color: Clear; Size: 8 x 6mm(D*L)
• Input Voltage: 1.5V; Current: 60mA (8655ff8b-2b17-11ea-990f-4cedfbbbda4e
• Terminal Number: 2; Wavelength: 940nm (Numro du terminal: 2; Longueur d'onde: 940nm

Aexit 5 Pcs High Power 940 Nano IR Infrared LED Diode SD-DR4001C9 For CCTV Camera (07101ab6a4790715332ddcdaeed3b5ef)
Specifications:Absolute Maximum Rating:Ta=25C
DC Forward Current IF:50 mA
Pulse Forward current IFP:1000 mA
Reverse Voltage VR:5V
Power Dissipation PD:90 mW
Operating Temperature:Topr -40 ~ +95C
Storage Temperature:Tstg -40 ~ +100C
Pulse width=100s
Duty cycle=1/100
Electrical-Optical Characteristics:Ta=25C
DC Forward Current VF IF:20mA --- 1.45 1.50V
DC Reverse Current IR VR:5V --- --- 10 A
Dominant Wavelength D IF:20mA --- 850 --- nm
Radiant Intensity IV IF:20mA --- 48 --- Mw/sr
50% Power Angle 2 1/2 IF:20mA --- 60 --- deg
Suitable:CCTV Camera
IR light
Telecommunications
Medication
Description in French
5 Pcs Haute Puissance 940 Nano IR Infrarouge Diode SD-DR4001C9 Pour Camra CCTV
Pays de fabrication: CHINE; Matire: Rsine; Poids net: 7g
Contenu de lemballage: 20 diodes infrarouges IR infrarouge; Modle: SD-DR4001C9
Couleur principale: Clair; Taille: 8 x 6mm (D * L)
d'entre: 1.5V; Courant: 60mA
Numro du terminal: 2; Longueur d'onde: 940nm
