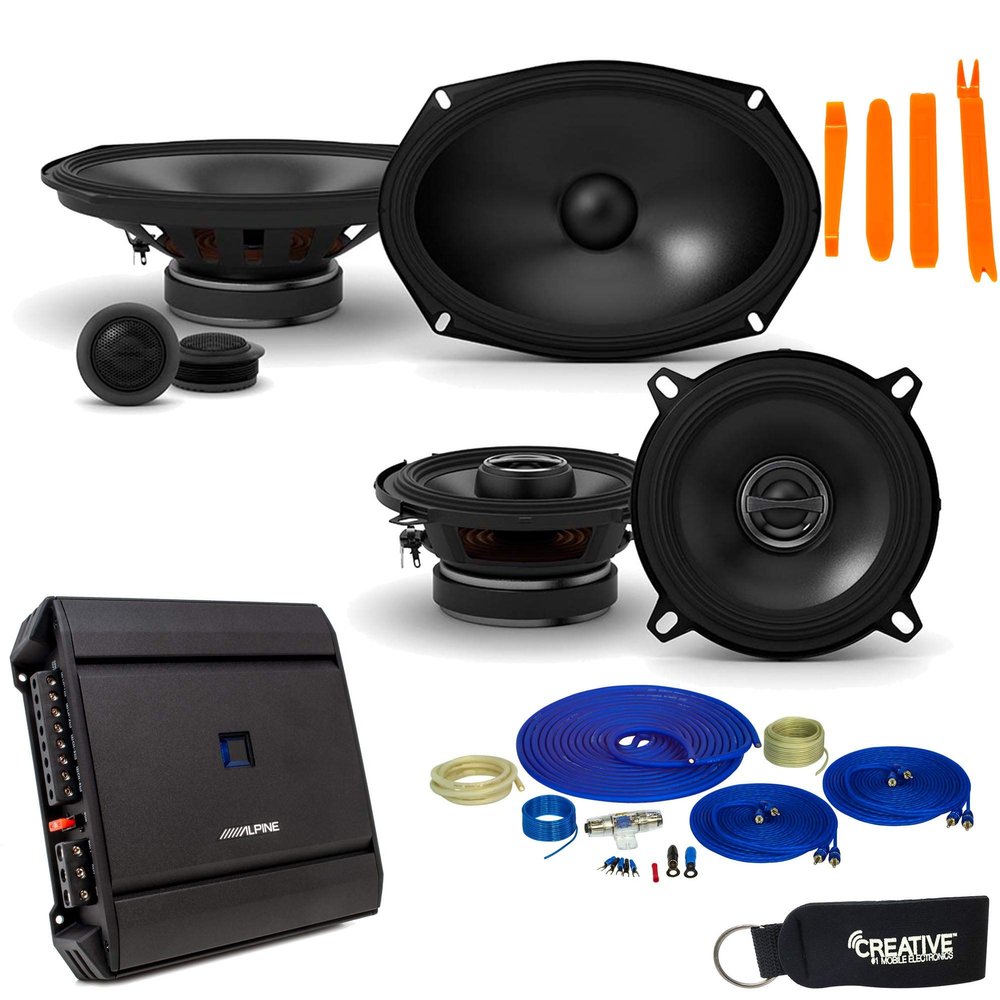

Alpine for Dodge Ram Truck 1994-2011 Type-S Speaker Bundle S-S69C 6X9 and S-S5 5.25" Coaxials with S-A32F Amplifier

Description

• Perfect for an OEM upgrade with many sizes to choose from to suit almost any vehicle
• Larger voice coil and new CFRP (Carbon Fiber Reinforced Plastic) cone
• Now with Alpines patented HAMR (High Amplitude Multi-Roll) Surround, allowing for large amounts of linear air movement
• The S-Series amplifiers were designed to perfectly complement the already established and loved S-Series speaker and subwoofer line.
• Power output 4-Ohm @ 14.4 Volts: 55 W RMS X 8

This bundle includes an Alpine S-32F Amplifier, a pair of Alpine S-S69C S-Series 6x9-inch Component 2-Way Speakers, a pair of Alpine S-S50 S-Series 5.25-inch Coaxial 2-Way Speakers & a wiring kit.

Alpine S-A32F S-Series 4-Channel Digital Amplifier - 80 Watts RMS x 4 @ 2-Ohms

The S-Series Amplifiers have a diagnostic LED located behind the blue Alpine Jewell on the top of the amplifier. A Blue light means the amplifier is operating normally. A red blinking light means the amplifier is currently too hot for operation and needs to cool down. A solid red light can mean three things; 1. Amplifier circuit is abnormal. 2. Temperature is too high. 3. Power supply voltage is too high.

Specifications:
Power output 4-Ohm @ 14.4 Volts: 55 W RMS X 4
Power output 2-Ohm @ 14.4 Volts: 80 W RMS X 4
Power output 4-Ohm Bridged @ 14.4 Volts: 160 W RMS X 2
Frequency Response:+0/-3 dB 10Hz - 30kHz
Frequency Response:+0/-1 dB 20Hz - 20kHz
Input Sensitivity: Hi (0.5 - 10V), Low (0.2 - 4.0V)
Crossover: Variable HPF/LPF, (50Hz - 400 Hz)
Dimensions: Width - 8-1/8", Height - 2-3/8", Depth - 8-1/8"
Weight: 4lb 3 oz

Alpine S-S69C S-Series 6x9-inch Component 2-Way Speakers (pair)
component speaker system includes 2 woofers and 2 tweeters
6"x9" carbon fiber-reinforced plastic woofer cone with specialized rubber surround
3/4" silk dome tweeter with inline crossover
frequency response: 65-22,000 Hz
sensitivity: 90 dB
woofer top-mount depth: 2-15/16"
grills not included
warranty: 1 year

Alpine S-S50 S-Series 5.25-inch Coaxial 2-Way Speakers (pair)
5-1/4" 2-way speakers
carbon fiber-reinforced plastic woofer cone with specialized rubber surround
3/4" silk dome tweeter
frequency response: 80-22,000 Hz
sensitivity: 87 dB
top-mount depth: 1-15/16"
grills not included
warranty: 1 year
