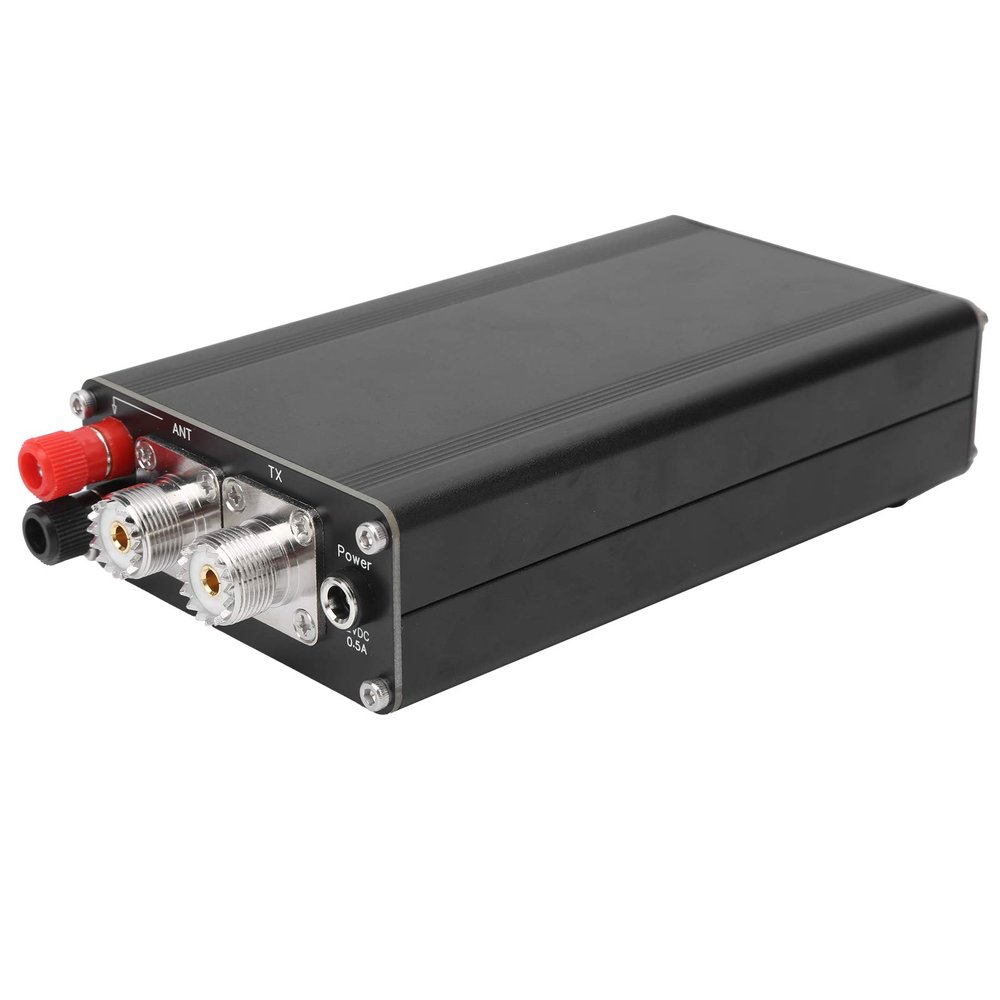

Automatic Tuner Aluminum Alloy Tester C Type 1.8-30Mhz HY100 HAM 10-15VDC

Description

• The tuner is automatically tuned without any control wires, suitable for most radio stations
• Stable and performance, practical, easy to operate and use, has a long service life
• Automatic tuner with great workmanship, made of aluminum alloy is strong and
• The tuner has a large heat dissipation area, which can better maintain longterm
• The maximum current consumption is 400 mA, the maximum operating power is 100W and the maximum possible measured power is 150W

Feature:
1. The product has a large heat dissipation area , which can better maintain long term operation.
2. Coated with anti paint , smoothly and greatly improve service life.
3. One piece molding without burrs , convenient to install and with good performance.
4. With great workmanship , made of aluminum alloy is strong and .
5. The maximum current consumption is 400 mA , the maximum operating power is 100W and the maximum possible measured power is 150W.

Specification:
Item Type: Automatic Antenna Tuner
Material: Aluminum alloy
Model: HY100
Allowable Supply Voltage Range: 10 15VDC
Maximum Current Consumption: 400 mA
Maximum Working Power: 100W
Maximum Possible Measurement Power: 150W
Minimum Power Required to Start Tuning: 5W
The Smallest Possible Measurement Power: 0.1W
Measurement Resolution for 10 Wh Power: 0.1W
Measurement Resolution for Power Greater Than 10 1W
Power Measurement Accuracy Error: 10%
Maximum Installation Inductance: 8.53?H
Minimum Installation Step of Inductance: 0.05?H
Maximum Installed Capacity: 1869 pF
Minimum Capacitance Installation Steps: 10 pF
Typical Consumption: 100 200 mA
Frequency Range: 1.8 30Mhz (actually can get 1.8 50Mhz)

Package List:
1 x Tester
1 x Connection Line

Note:
1.Hex screws and power switch colors are shipped randomly.
2.Please note that the new type and old type of this product will be sent randomly , and make sure you will not mind before ordering.
