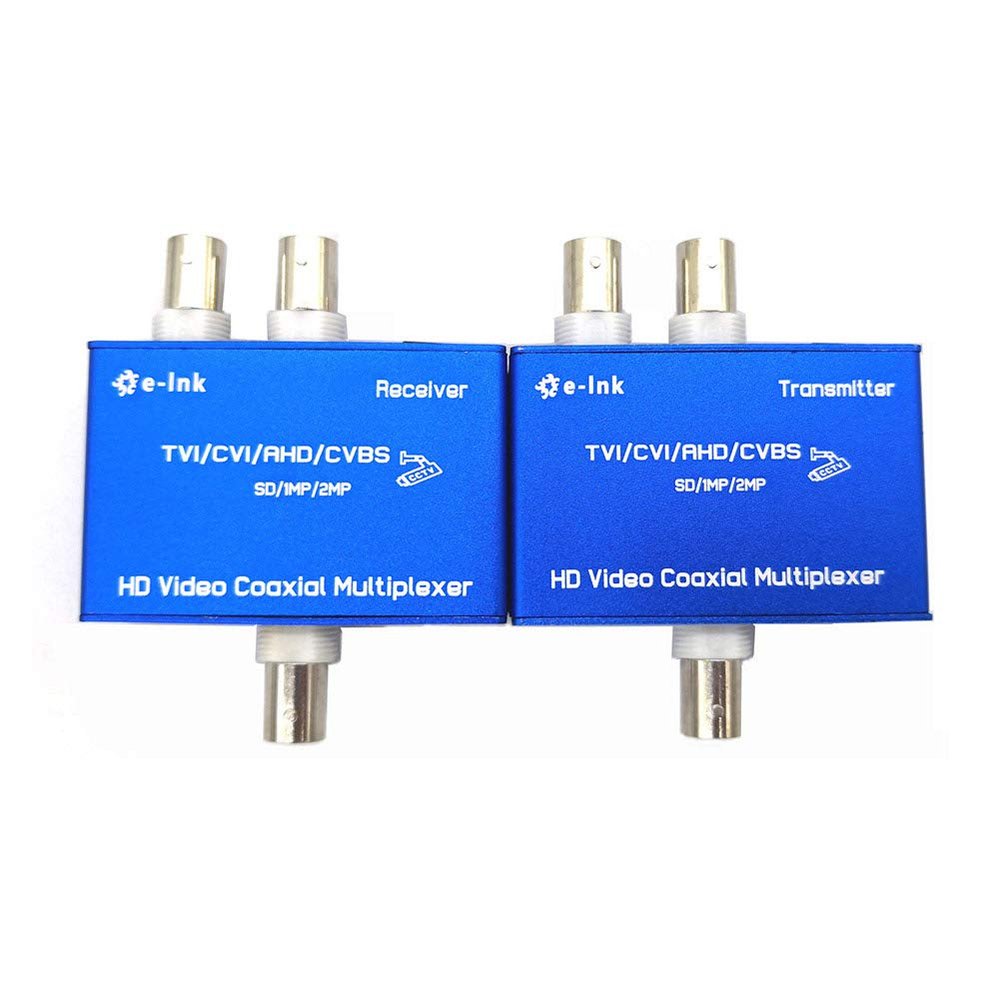

E-link 2CH CVI AHD TVI Coaxial Multiplexer, HD Analog Camera CCTV Video Multiplexer Over Single Coax Cable up to 1300ft

Description

• Support 2 channel 1080P CVI/AHD/TVI Camera or Analog Camera.
• Transmit Over SYV75-3 Single core coaxial cable.
• Max distance: 1300 Feet (400m).
• The HD multiplexer converter 2 video signals into digital signal and transmit over single Coax cable.
• The CCTV multiplexer used for the locations that dont have enough coaxial cable resource and projects need to save cost for cabling.

2CH CVI AHD TVI Coaxial Multiplexer HD 1080p Analog Camera CCTV Video Multiplexer Over Single Coax Cable
Descriptions:
This Coaxial Multiplexer uses special compression modulation technology, on the front end (transmitter) 2-Ch CVI/AHD/TVI HD video signals are compressed, made into digital signal in coaxial cable transmission, the back-end (receiver) through demodulation, reductive into 2 HD signals after decompression, for HD DVR (TVI/CVI/AHD) or matrix is used. The 2 channel signals are translated over single Coax cable and support 1080P video, max distance is 400 meters.
Features:
2 Channel CVI/AHD/TVI video signal for camera over 1 coaxial cable
Designed according to projects with minimum cable installation volume requirement
Long distance transmission up to 400m
Frequency Division Multiplexing, with all CVI/AHD/TVI video transmission real-time and all images high-definition and non-delay.
One coaxial cable Transmission, which save cable infrastructure cost
Maintaining high quality CVI/AHD/TVI video & anti-interference immunity
Easy installation with BNC harness

Specifications
Cable requirement: SYV75-3 Single core coaxial cable
Camera Support: AHD/CVI/TVI, Max 1080P
Interface: BNC
Transmission Distance: 400m Max
Power: DC12V
Shell Material: Aluminum
Working temperature: 055

Note: Power Supply not included, need to purchase separately.

Package:
2Ch HD Coaxial Multiplexer Transmitter x1
2Ch HD Coaxial Multiplexer Receiver x1
CCTV Coaxial Multiplexer Users Manual
