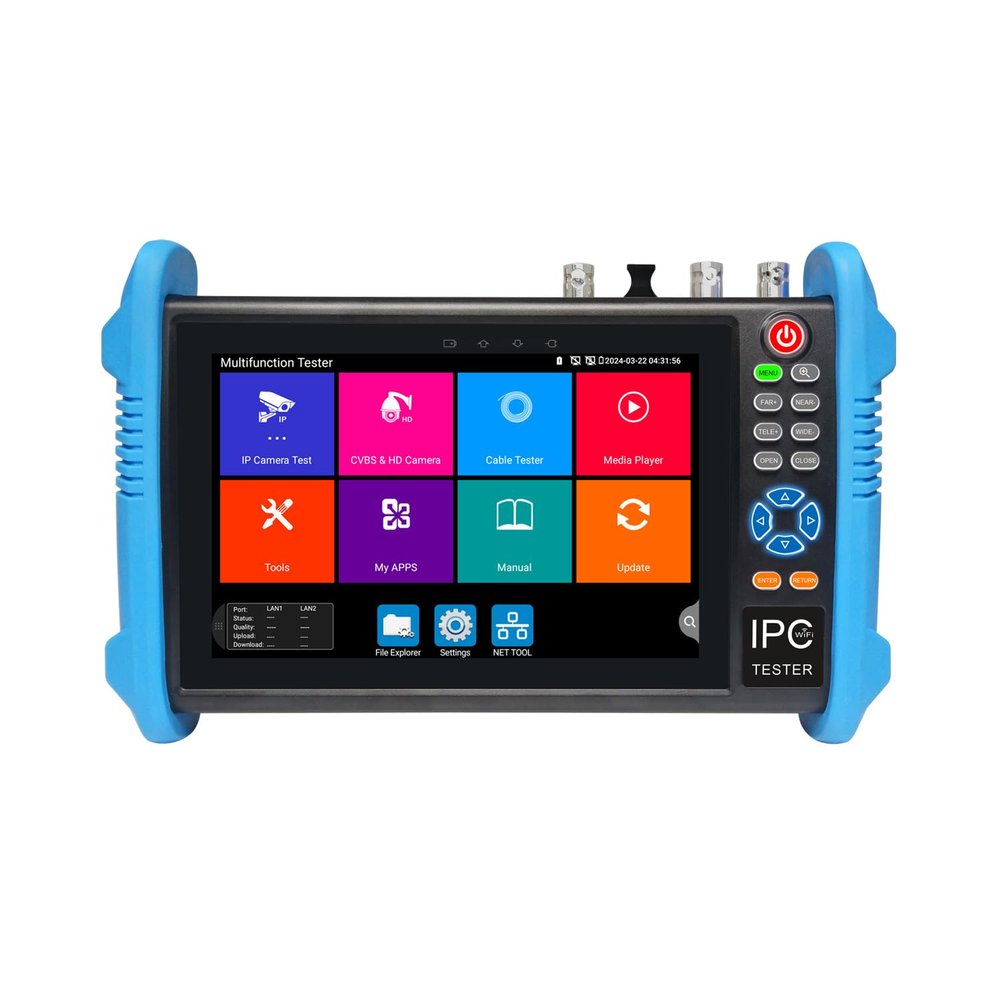

ETEKJOY IPC-9800ADHS-Pro CCTV IP&Analog Camera Tester Test 7-inch IPS Touch Screen Monitor CVBS Tester with HD-TVI/HD-CVI/AHD/SDI/POE++/WIFI/8G TF Card/8K H.265/HDMI in & Out/RJ45 TDR/Upgraded

Description

• H.265/H.264, 8K video display via mainstream. 7 inch IPS touch screen, 1280*800 resolution.
• 5MP TVI(2560x1944P 12.5FPS) test, 4MP AHD(2560x1440P 15F/25F/30F) test, 4MP CVI(2560x1440P 25F/30F) test, 3G-SDI/HD-SDI/EX-SDI test(1080P 25/30/50/60fps) 4xzoom, video record and playback, Coaxial PTZ control and call camera OSD menu, 8K IP camera, dhcp server
• RJ45 cable TDR test, cable quality test. Rapid ONVIF, auto view video, and create testing report.
• Dual window test, IP &Analog camera test. TesterPlay, tester, android version mobile phone and PC display at the same time.
• HDMI input & output, 1080p. Quick office(excel ,word ,PPT format ) doc. UTP cable tester. Customers self update software. Built in WIFI, create WIFI hotspot. IP discovery , shortcut button, drop-down menu. DC12V 2A, DC48V PoE++ power output.

Note: Do not support Cable trace and Video level meter
Features:
IP & CVBS camera test, PTZ controller
Rapid video, just by one key to detect all network cameras and auto display
In HDMI in mode, It can converter test from analog to digital with dual test window IP & HDMI in or Analog & HDMI in
RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
HDMI signal input, support 1080p display image, record and snapshot
CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable
Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters
Customers self update software, you can install apps with android version, such as Skype, wechat etc
8K video files and MKV/MP4 media files play
8GB SD card including
ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)
PoE++ DC48V power output, Max power 24W, 12V /2A power output/5V 2A power output, as a power bank
IP discovery, it can auto-scan the whole network segment IP, and auto-modify testers IP address
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
POE++ voltage measurement, PING test, IP address scan, port flashing etc
Shortcut button, drop-down menu, can select PoE power, IP setting, WLAN switch, HDMI IN functions etc in any interface
Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools
7.4V/5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging, working time lasts 10 hours
