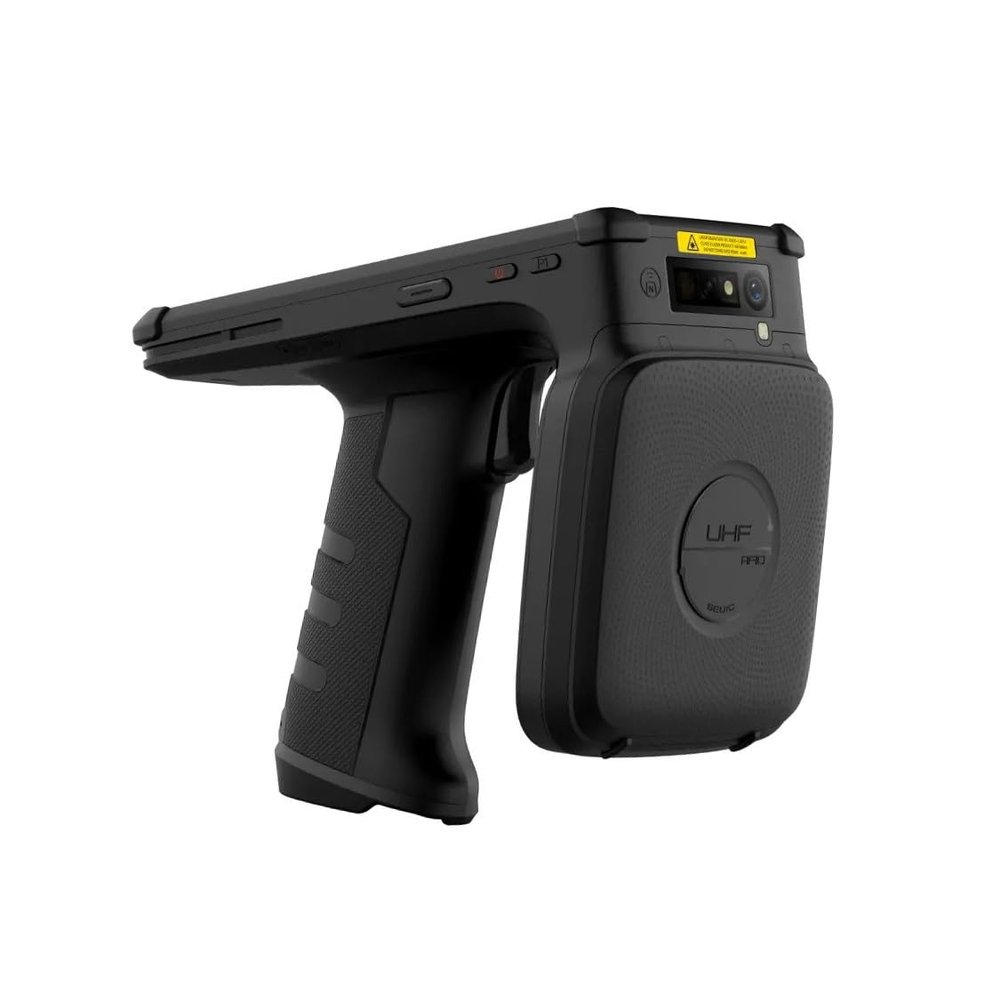

Geenfc Utouch 2 Handheld UHF RFID Reader >10 Meter Distance Android 12.0 4G/3G/2G/ WiFi/Bluetooth ISO18000-6C

Description

• 902- 928 Mhz, built-in circular 5dbi polarized antenna
• impinj E710 uhf module, typical 8 meter read distance
• 5.2" 720P FHD touch pannel, 8 core CPU, 4 GB RAM + 64 GB ROM
• 2D scanner engine, Andriod 12.0 OS supported
• ISO18000-6C& EPC C1G2 protocol supported

Physical Characteristics

Dimensions: 170(H)80(W)132.7(T)mm
Weight(With battery): 630g (depends on different configurations)
Display: 5.5 inch, 1440*720
Touch Panel: Multi-touch panel, gloves and wet hands supported
Power: Host battery: 5000 mAh, Grip battery: removable 6700mAh rated capacity; Bottom type-C USB interface, support QC 3.0, support intelligently identifying PC and charger; Support charging cradle for charging the pistol grip.
Expansion Slot: Micro SD Card, 256GB SDHC,compatible

Performance Characteristics

CPU: MTK8788 Octa core 2.0GHz
OS: Android 12.0
RAM+ ROM: 4GB+64GB

UHF

Frequency: 902-928MHz
Protocol: ISO-18000-6C, EPCC1G2
UHF module: Impinj E710
Antenna: 5dBi circular polarization, default as 920-925MHz
Power: 1~33dBm
Reading Range: >9m @impinj H47 (depending on the tag and environment)
Writing Range: 0-6m (depending on the tag and environment)
Multi-tag reading: 700 tags decoding within 20 seconds (actual speed subjects to the influence of surroundings)

Note: *Ranges and rates depend on tags and environment

Camera

Camera: Front camera:5M pixel
Rear camera: 8M pixel

Wireless

WLAN: IEEE 802.11a/b/g/n/ac (2.4G/5G dual-band WIFI6)
4G/ 3G/ 2G: 4G: B1/B3/B5/B7/B8/B20/B28/B38/B39/B40/B41
3G: B1/B2/B5/B8/B34/B39/BC0
2G: 850/900/1800/1900MHz
Bluetooth: Bluetooth 4.2
GNSS: GPS/AGPS, GLONASS, BeidouBarcode Scanning

Scan Engine: 2D Image scan engine
1D Symbologies: UPC/EAN, UPC/EAN , Code128, GS1-128, Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial2 of 5, Codabar, MSI ,Code11, etc.
2D Symbologies: PDF417, MicroPDF417,Data Matrix, Maxicode, QR Code, MicroQR, Aztec, etc.

Software

OS: Android 12.0
SDK: provide source code, API
