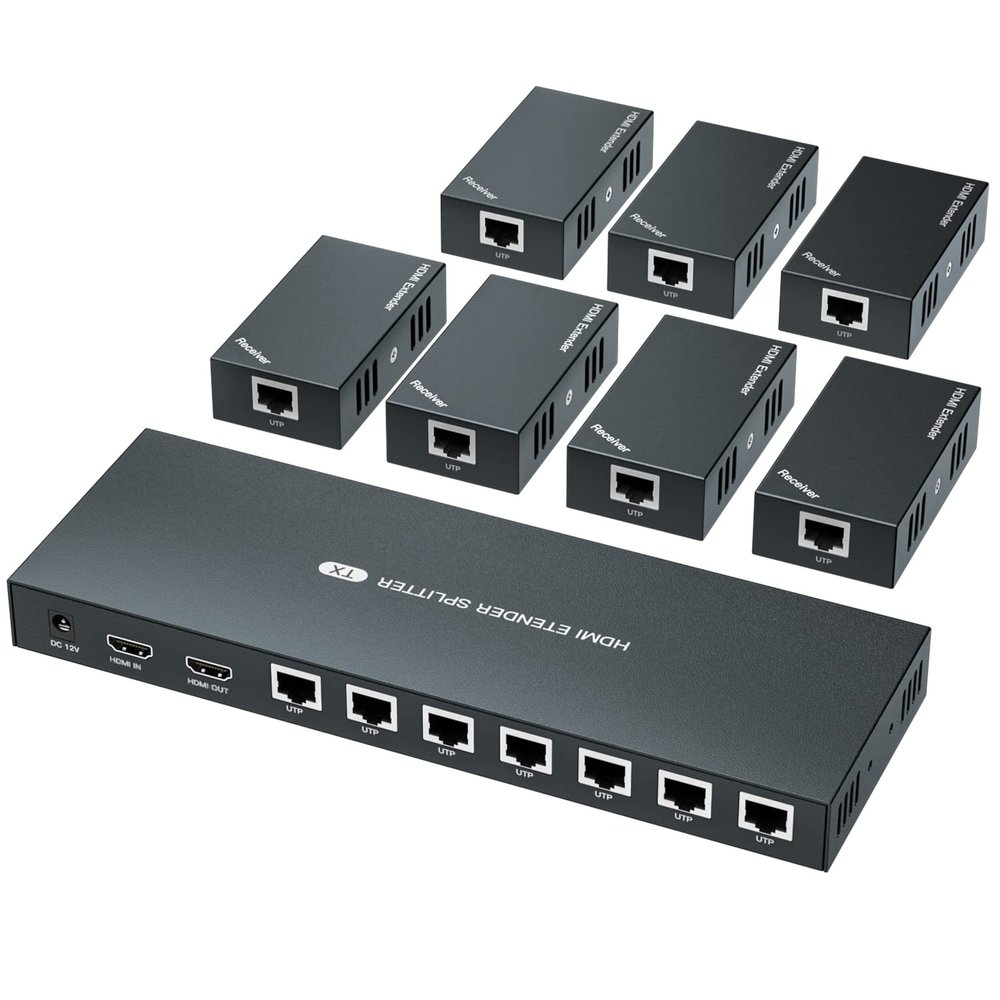

HDMI Extender Splitter 1x7 1080P@60Hz Over Cat 5E/6/7 Ethernet Cable 50m (164ft) Support HDMI loopout EDID Copy POC Function (1 in 7 Out), Monitor

Description

• One Transmitter + 7 Receivers Split audio and video into 7 channels of the same signal for long distance transmission. In addition, with HDMI local output on the transmitter side, can connect the monitor locally.
• Full HD 1080P Up to 1920x1080P@60Hz, high-definition picture, clearer and more eye-catching. Also compatible with 3D signals and other 1080i/720p resolutions.
• HDMI Over Ethernet Up to 50m/164ft by Cat6/7, 45m/147ft by Cat5e, 40m/131ft by Cat5. High-quality cables are essential for stable signals and long-distance transmission.
• Simpler Connection Power over cable, only one power adapter is needed to get the device running completely. No more plugs needed.
• Application Mainly used in engineering, security, exhibitions, home audio&video, etc.

HDMI EXTENDER/SPLITTER
Change the mode of audio&video signals for longer distance transmission, HDMI IN --- CAT X --- HDMI OUT. 7-channel simultaneous transmission.
Specifications:
1.Video
Standards --- HDMI 1.3
Maximum pixel clock---165MHz
Maximum data rate---6.75Gbps
Resolution ---1920X1080@60Hz, 3D
Connector --- HDMI-A
2.Ethernet
Interface --- RJ45
Transmission distance --- CAT6---50m/164ft; CAT5E---40m/130ft; CAT5-30m/100ft. When the Ethernet cable is between 1~10 feet, it may have no image, please try another longer cable.
3.Others
Power supply--- Input: 110~220V; Output: 12V
Power dissipation---MAX 12W
Temperature---Operating: -5 ~ +70
Humidity---Operating: 5% ~ 90%
Dimension---TX:257*87*25mm / RX:81*45*23
4. Packing list
HDMI transmitter --- 1 pcs
HDMI receiver --- 7 pcs
Power adapter --- 1 pcs
User manual --- 1 pcs
About EDID
When the EDID cannot automatically identify the monitor parameters, the image may not be displayed, please perform the following steps.
(1) Connect the monitor to the HDMI IN on transmitter.
(2) Connect the power supply to transmitter.
(3) Press and hold the EDID button for 3-5 seconds. The green light on transmitter side stops flashing, indicating EDID copy is complete.
Last but not least, if have any product issue, please feel free to contact us and we will provide you with solutions.
