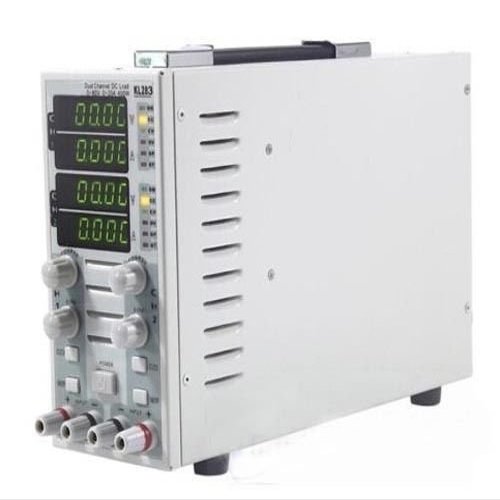

Jian Ya Na 110V KL283 2CH Dual Channel Adjustable LCD DC Electronic Load 300W 80V 30A

Description

• Voltage and current are four high-precision digital LED display
• Small size, high power, simple operation
• Over-voltage, over-current, over power, overheating, reverse polarity protection
• Operating modes are given voltage and constant current, especially for LED power supply and battery testing and aging
• Have isolated two independent input channels can be paralleled constant current mode, constant voltage mode can be connected in series

Parameter:
Channel(load input):2CH
Voltage input:0~80V DC
Current input:0~30A DC
Power input:0~300W
Voltage Accuracy:0.00~80.00V0.03%+5mV
Current Accuracy:0.000~15.000A/0.000~20.000A0.03%+5mA
Min.Resolution:0.01V/0.001A
Min.Rdson:<0.08
Ripple Wave:<5mVpp
Working Condition:0~50, 80% RH
Power Dissipation(input):15W
Weight:4kg
Size(WHD):80x 180x 260mm
Package include:
1 set of Load meter
