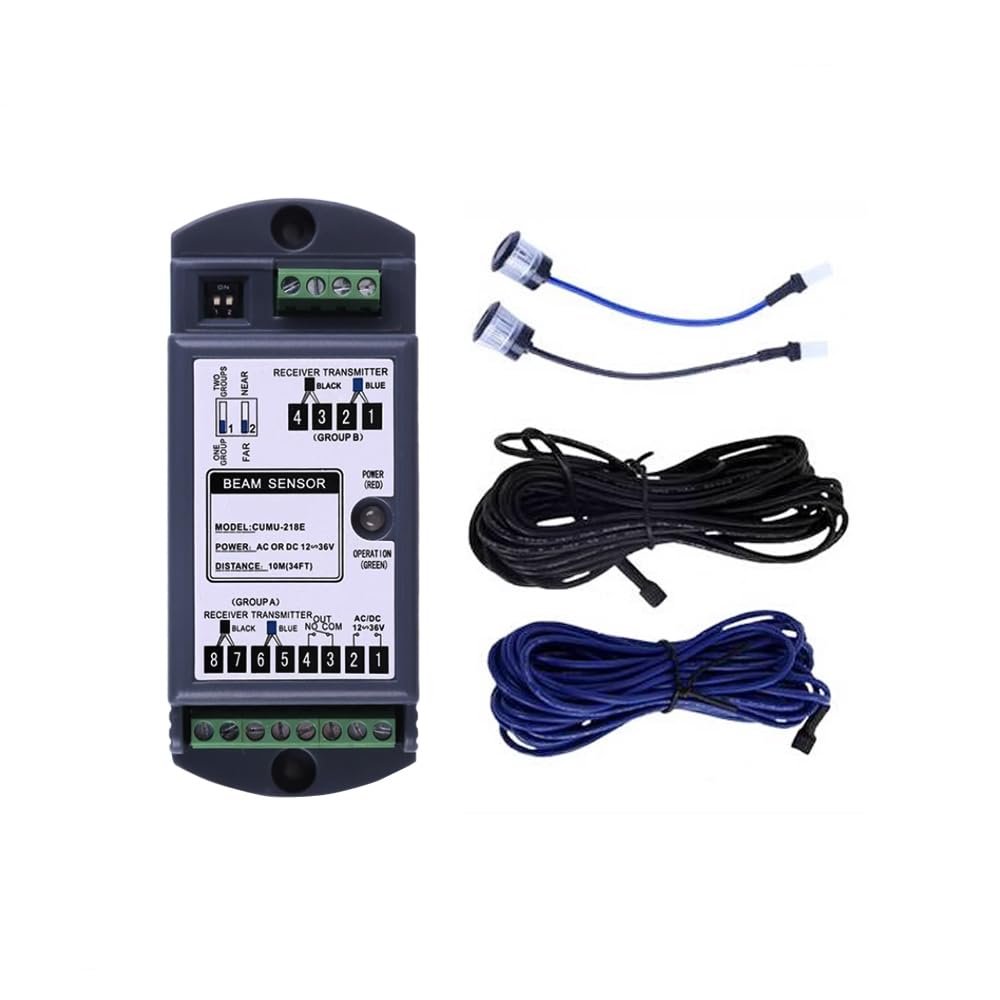

M-218E 10M Range Secure Beam Relay Output Sensor for Automatic Doors

Description

• Automatic door beam relay output sensor

Supply power.AC/DC12-36V
Static current:25mA
Action current:40mA
The maximum distance between the sending and receiving:10m
NO or NC output contact:0-1.5s (adjustable)
Outside in lines with the send wiring:6m(blue)
Receive line:6m(black)
Beam:Single beam or double beam
Working Environment temperature:-42-45
Working environment humidity:10-90%RH
Appearance dimensions(Main controller):123(L)x50(W)x32(H)mm
Appearance dimensions(Magic eye head):19(L)x13(D)mm

Package1pcs
