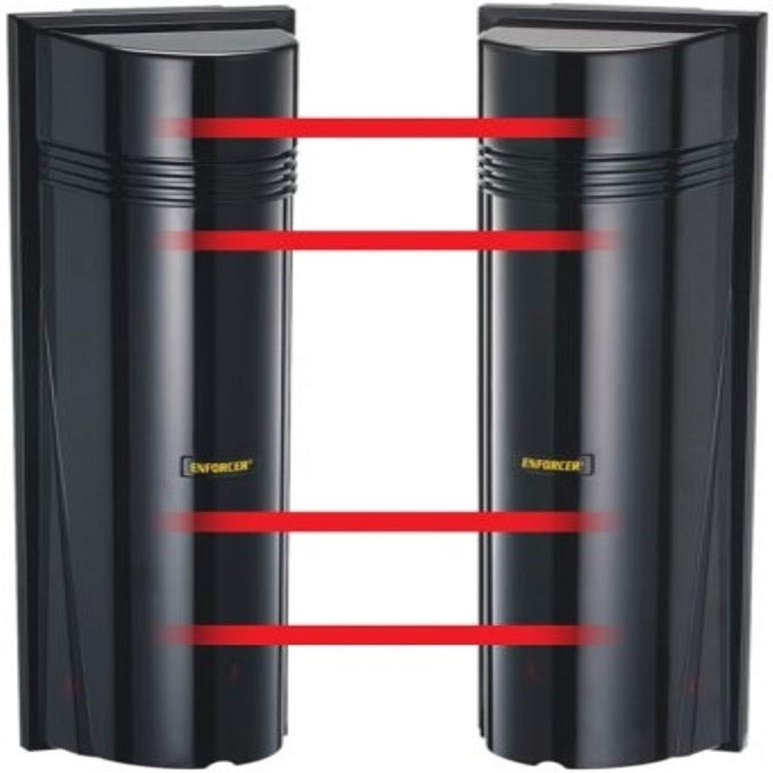

Seco-Larm Enforcer Quad Photobeam Detectors, 330-660 Ft. Range (E-964-Q330Q)

Description

• Designed to provide reliable perimeter security both indoors and outdoors
• Easy-to-install with laser beam alignment
• Quad infrared beams minimize false alarms from falling leaves, birds, etc.
• Anti-frost system with built-in heater so that beam functions even in extreme conditions
• NO/NC alarm output

Secure the perimeter around your home or property with Seco-Larm Enforcer Quad Photobeam Detectors. Quad photobeam detectors feature extended ranges that are ideal for long-distance protection. When the infrared light beams are broken, the sensors are activated and alert you to the intruder, helping you keep your home safe and secure. Four selectable beam frequencies eliminate interference Beam strength LED indicators Audible beam alignment (buzzer) Built-in heater for indoor or outdoor use NO/NC alarm output
Reduces False Alarms
Because all four beams must be simultaneously broken for activation, false alarms created by animals and falling leaves are minimized.
Built for Extreme Conditions
A built-in heater automatically turns on and off depending on the outside temperature. An environmental control output senses a slow degradation in beam strength when weather conditions worsen preventing false alarms. Lensed optics reinforce beam strength and provide excellent immunity to false alarms due to rain, snow, mist etc.
Easy to Align and Install
The built-in laser and visual alignment systems quickly and easily pinpoint the approximate mounting location for the transmitter and aid in aligning the transmitter and receiver units once mounted. A beam strength indicator clearly displays the strength of the beam at the receiver with 5 LEDs. Four selectable beam frequencies allow for superior perimeter protection by eliminating crosstalk and interference between multiple units.

Contents
Enforcer Quad Photobeam Detector (Transmitter) Enforcer Quad Photobeam Detector (Receiver) Beam alignment template Manual

Technical Details
MPN: E-964-Q330Q UPC: 676544000976 Max. range (outdoor): Up to 330 Ft. (100m) Max. range (indoor): Up to 660 Ft. (200m) Current (Tx, Rx): 100mA Current (Tx, Rx, heaters): 260mA Input voltage: 12 to 24 VAC/VDC (non-polarity) Delay time: 50 milliseconds to 700 milliseconds (variable) Detection method: All 4 beams simultaneously broken Selectable beam frequencies: Four (4) channels Alarm output: Form "C" relay COM/N.O./N.C. 1A at 125VAC/24VDC Tamper output (Tx & Rx): NC switch, 1A at 120VAC Environmental output: Selectable N.O. or N.C. 1A at 125VAC/24VDC Beam-strength indicator: 5 LEDs indicate signal strength from high to low Signal LED (Rx): Red LED ON beam is broken or Tx and Rx out of alignment Power LED (Tx & Rx): Green LED illuminated when power is on Laser wavelength: 650nm Alignment angle: Horizontal: 900 Vertical: 150 Operating temperature: -13 to 131 degrees F (-250 to 55 degrees C) Weight: 5.7 pounds (2.6kg) Ingress protection: IP55 Case: PC Resin Dimensions: 15-1/4 x 4-7/16 x 4-11/32 inches (387 x 113 x 110mm) Warranty: 1 Year
