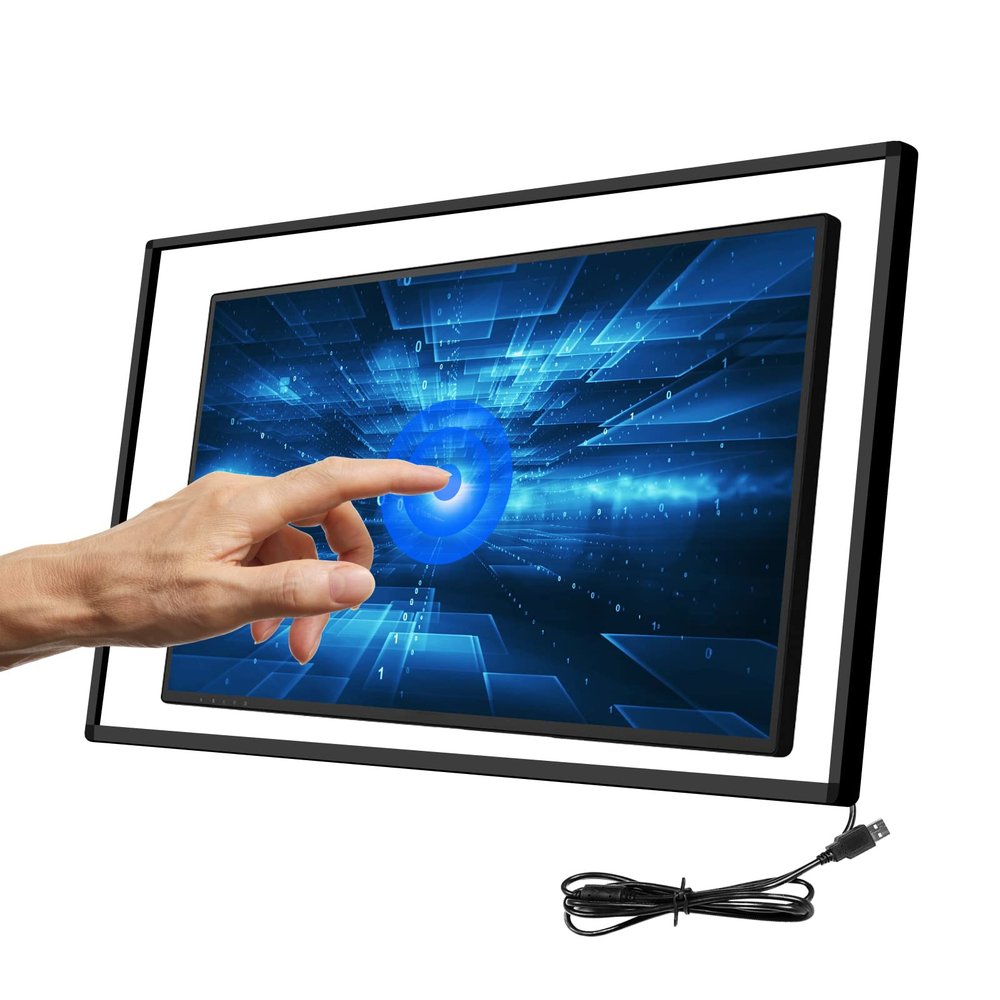

SpecialTouch 40 inch Infrared Touch Screen Frame 20 Points Interactive Ir Touch Panel Overlay Suitable for Touch Monitor TV Frame (32-98inch)

Description

• HIGH-QUALITY MATERIAL: The frame of the interactive infrared touch screen adopts aluminum alloy black frame, which has a long service life. USB plug and play, intelligent automatic calibration, drive-free and maintenance-free. Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.Fast response (10ms)
• LIGHT-RESISTANT DESIGN: The IR touch frame can be applied to internal and external link environments, and is widely used in touch screen displays, touch all-in-one machines, touch kiosks, touch digital signage, and touch whiteboards. Application areas include games, education, conferences, exhibitions, advertising and other interactive applications.
• EASY TO INSTALL: Our ir touch screen overlay is a plug-in design, the installation work is very simple and easy. You can read the installation pictures and you will do well.If the touch positioning is not accurate after installation, we can provide the calibration software.
• SCOPE OF APPLICATION: HID plug & play driver free for Windonws,Native Android and Native Linux. Need to install the HID driver in Mac OS.
• PACKING: Touch frame only (without monitor , without glass)Warranty is 1 year.If there is any other question , please feel free to contact us !

SPECIFICATION

Standard Size: 40 inch

Ratio: 16:9

Number of Touch Points: 20

Minimum Touch Object: 2mm

Touch Activation Force: No minimum touch pressure required

Touch Durability: Unlimited

Durability Resolution: 32768*32768

Linearity Deviation: 1mm

Frames per Second: Up to 450 fps

Typical Response Time: 3-10ms

Light Transmission: 100% without glass

Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under Mac

(Does not support Smart TV Android system, Raspberry Pi)

Protocols: HID,TUIO,Flash

Re-development Provide: free SDK, support C/C++, C#, Java etc.

Noise : No Noises

Lift Time : 7 -10 years

ELECTRICAL

Power Supply: Single USB Connection

Low Power Consumption: Operating 2W, Stand By 250mW

ESD: Contact Discharge 8kV,Air Discharge 15kV,15kV on USB connector pins

ENVIRONMENT

Operating Temperature: -20C~70C

Storage Temperature: -40C~85C

Operating Humidity: 10%~90%RH(Non-condensing)

Storage Humidity: 10%~90%RH

Certification: FCC,CE,ROHS

Warranty: 1 year

Note : If there is any other question , please feel free to contact us !
