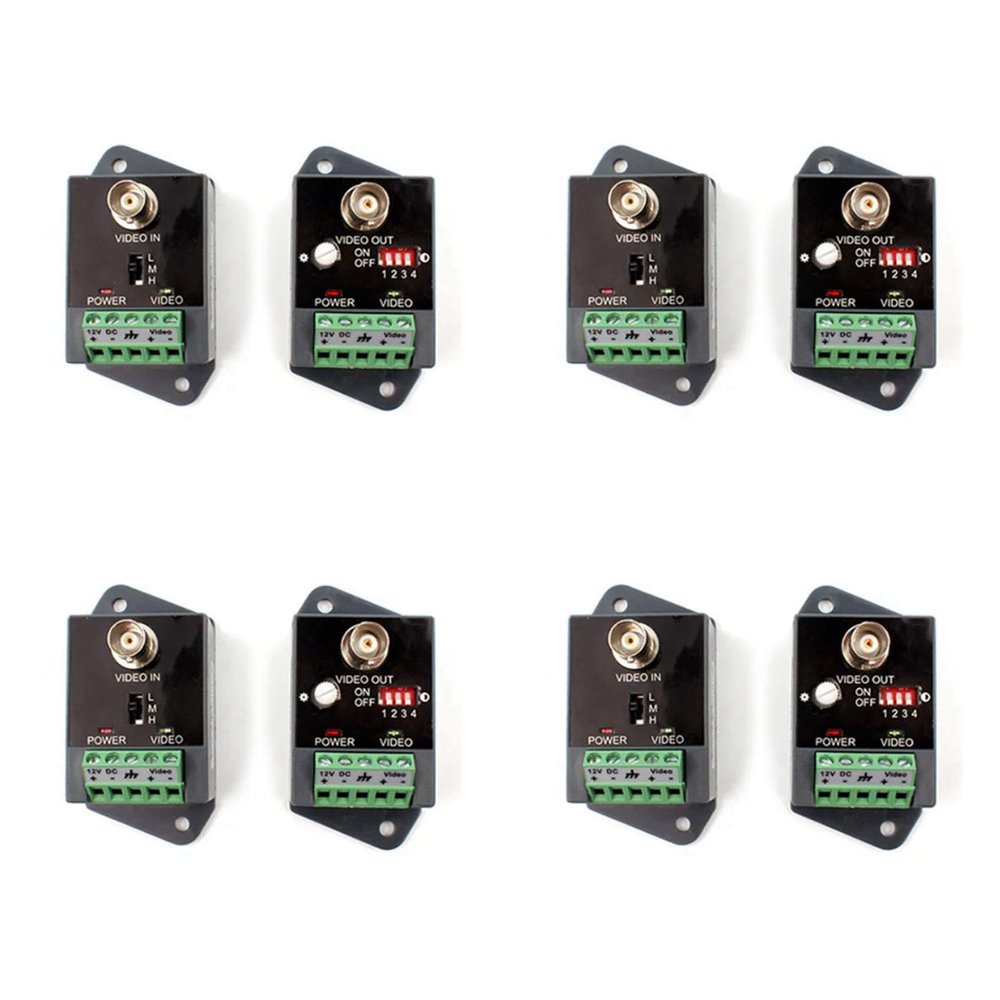

Viodmss 4X Single-Channel Active Video Balun for CCTV HD-TVI CVI AHD Active HD Video Transceiver

Description

• Description
• Report Item
• Technical :
• SUPPORT:HD-TVI-CVI-AHD-CVBS

Viodmss AHD: 720P/1200M,1080P/900M,300W/400W: 750M
CVI: 720P/1200M,1080P/900M,300W/400W: 750M
TVI: 720P/1000M,1080P/800M,300W/400W: 650M
CVBS: 1200TVL/1800M
Type: 1CH Active
Frequency respons: DC-6Mhz
Conmmon-mode/Differential-mode Rejection: 15Khz 6Mhz 60dB typ
Power: 12V DC
Impedance:
Coax,male BNC: 75UTP(Screwless)Terminal Block
UTP RJ45 Data Connector: 100
Wire type: One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm)
Per video signal: DC Loop Resistance 52 ohms per 1000 ft(18 ohms per 100m)
Surge suppression: 6000V 1.2 S x 5 S
Control: Brightness and Sharpness
UTP Port: Terminal Block
Dimensions: 103mmx70mmx30mm
Weigth: 100g
Temperature: -10~+50
Humidity: 0~95%
color: Black
Material: plastic+metal

Package Contents:
4 x transmitter kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
