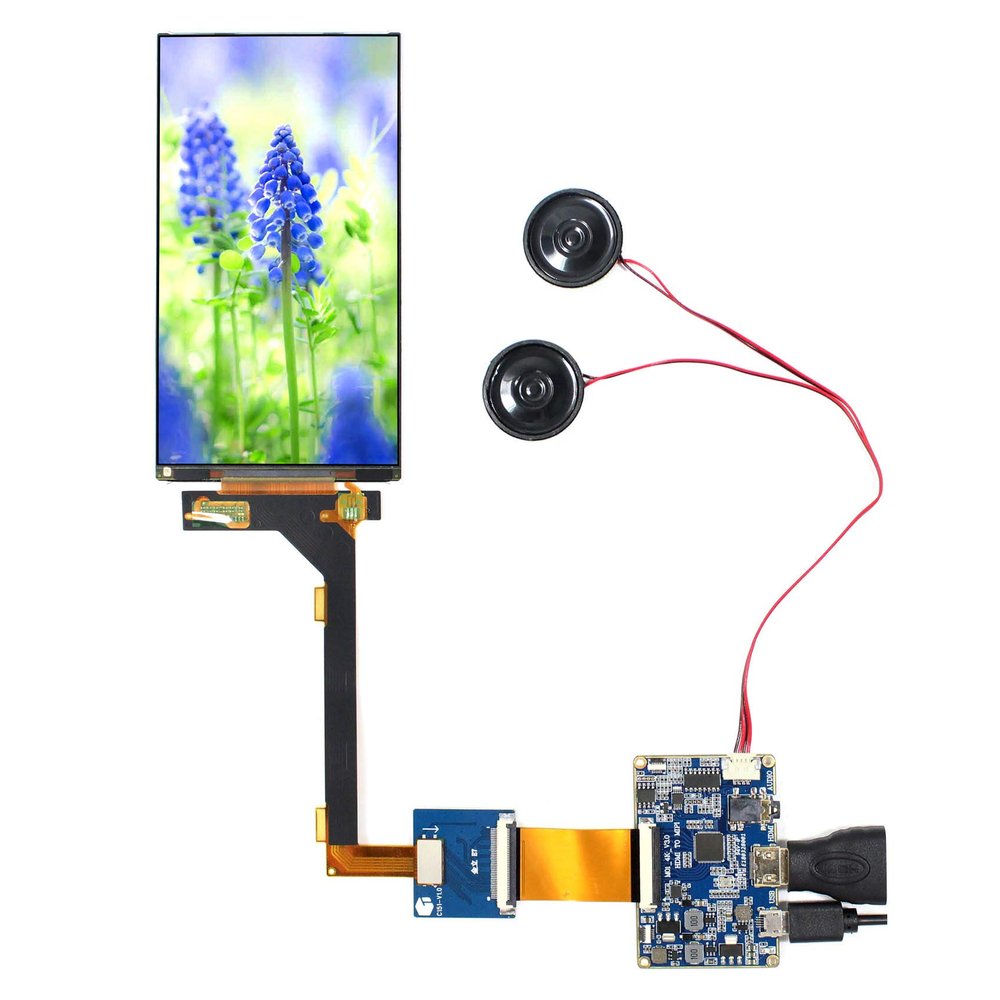

VSDISPLAY for 3D Printer 5.5" 1080X1920 LCD Screen 5.5 inch LS055T3SX05 Display with to Mipi LCD Controller Board (with Speaker)

Description

• 5.5" LS055T3SX05 1080X1920 LCD Screen: Brightness 450 cd/m (Typ.) Contrast Ratio 1000:1 (Typ.) (TM)
• Viewing Angle 80/80/80/80 (Typ.)(CR10) [Left / Right / Up / Down]
• Board Work for 40Pin Mipi LCD Screen, Input Power Adapter: 5Vdc More than 1A. Mirco USB
• Audio Input: Audio Output: Speaker Earphone
• Packing list: 1 To Mipi LCD Controller Board 1 5.5inch LS055T3SX05 1080X1920 LCD Screen 1 Signal Cable 1 Converter Board 1 8ohm 2W Speaker (Help to notice there is no power adapter and power cable in the packing list)

LCD Controller Board:
Board Work for 40Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A. Mirco USB
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input:
Audio Output: Speaker Earphone
Board Size: 60mm x 40mm x 3mm

5.5" LS055T3SX05 1080X1920 LCD Screen:
Display New Mode2, Normally Black, Transmissive
Resolution 1080(RGB)1920
Outline Size 70.44 129.591.61(HVD)
Display Area 68.04 120.96 (HV)
Brightness 450 cd/m (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes) , 40 pins , Connector
Backlight WLED
Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

Packing list:
1 To Mipi LCD Controller Board
1 5.5inch LS055T3SX05 1080X1920 LCD Screen
1 Signal Cable
1 Converter Board
1 8ohm 2W Speaker
