VSDISPLAY for 3D Printer Replacement Display,5.5 Inch LS055R1SX04 1440X2560 2K IPS LCD Screen with to Mipi LCD Controller Board

Description

• Specification:5.5 Inch LS055R1SX04 LCD screen high resolution 1440(RGB)2560 with to MIPI LCD contoller board
• Feature: board work for 50Pin Mipi LCD screen, audio input
• Compatible 3D Printers:This LCD screen is usually used for 3D printers. It also apply to pc,can be a replacement screen
• Service:All the products are tested before package and shipment,if any problem of product,please feel free to contact us

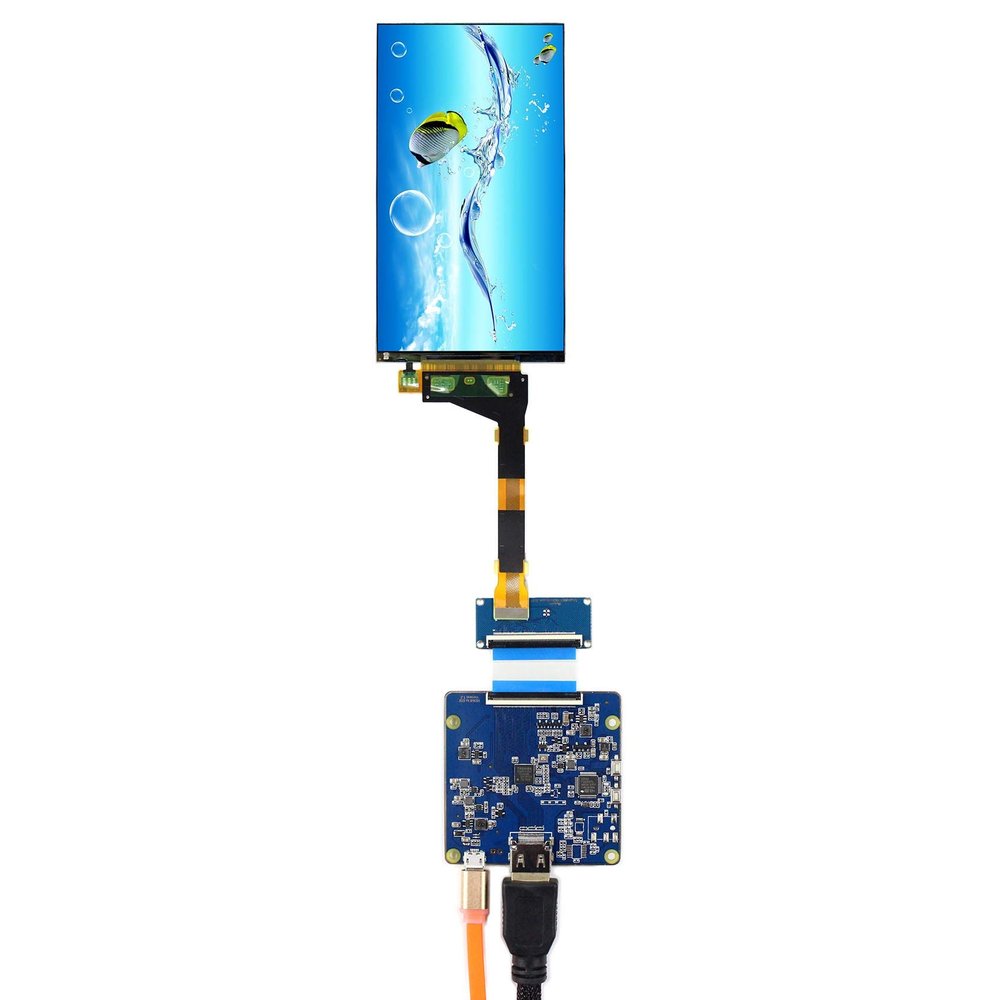

• Packing list:1 To Mipi LCD Controller Board VS- TMIPI-V1;1 5.5inch LS055R1SX04 1440x2560 LCD Screen;1 Signal Cable;1Converter Board

LCD Controller Board:
Board Work for 50Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input:
Apply toPC i
Board Size: 65mm x 64mm x 3mm

5.5" LS055R1SX04 1440X2560 LCD Screen:
Display New Mode2, Normally Black, Transmissive
Resolution 1440RGB)2560
Outline Size 70.94 128.491.45(HVD)
Display Area 68.04 120.96 (HV)
Brightness 450 cd/m (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes) , 50 pins , Connector
Backlight WLED
Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

Instuction:
1. When signal is not accept. It shows black Image and LED flashing on main board. Please change source for test.
2. When accept. It shows correct image and LED is blue.
This Board work with PC. The image not support Scaling. It shows image depend on input source.

Turn On
aConnect Converter Board With LCD Screen Interface
bConnect Converter Board With 60Pin Cable
cConnect Main Board With 60Pin Cable
dInsert USB Cable
eTurn On 5Vdc or USB as Power Supply

Turn Off
aTurn Off 5Vdc or Remove USB Power Adapter
bRemove Cable
cDisconnect Main Board With 60Pin Cable
dDisconnect Converter Board With 60Pin Cable
eDisconnect 60Pin Cable With LCD Screen

For PC:
1. Most of MIPI screen for vertical display. Need to adjust computer graphics mode.
2. Replication Mode - Extended mode - Vertical and Horizontal adjustment.

1. The Main Board Four Locating Holes
