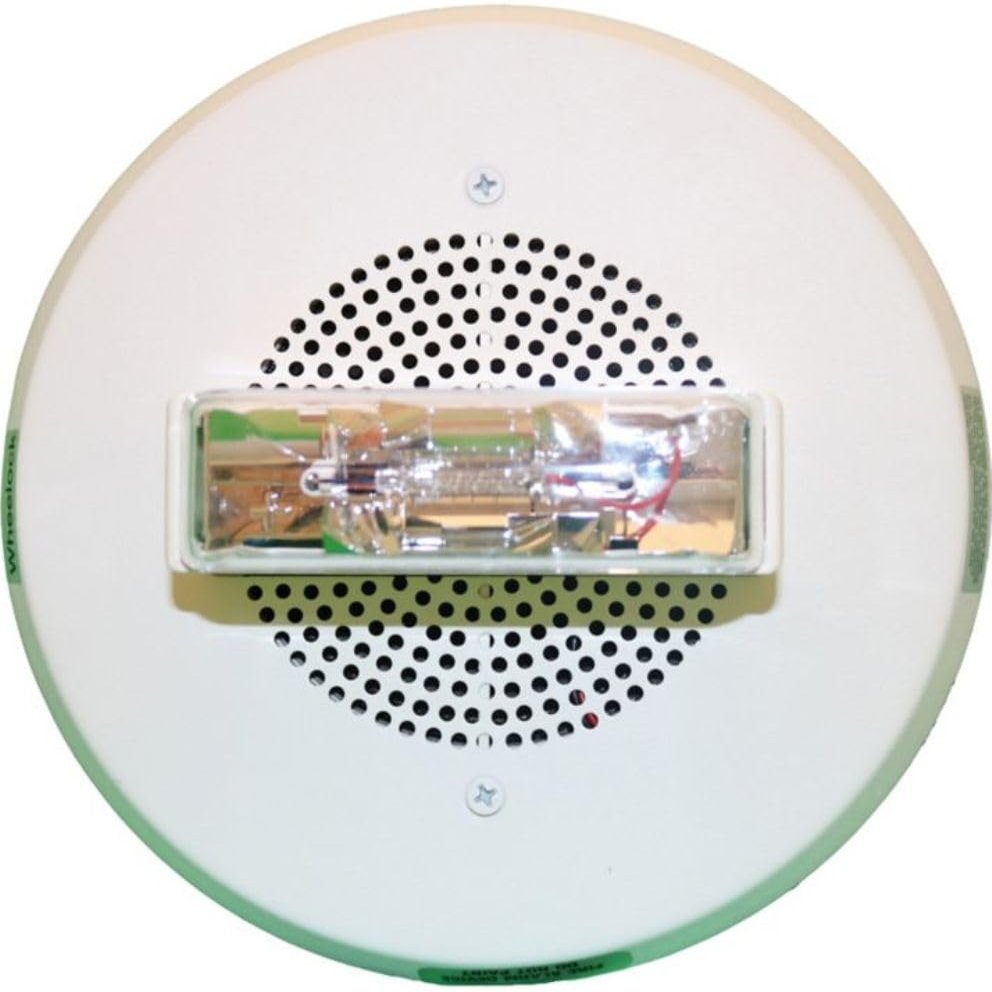

Wheelock CH90-24MCCH-FW Ceiling Mount 24 VDC Chime Strobe, White, Frequency range 300 to 8000Hz, Field Selectable Candela Settings of 15/30/75/95cd

Description

• Low current draw with temperature compensation to reduce power consumption and wiring costs
• Strobes produce 1 flash per second over the regulated voltage range
• 24 VDC with wide UL "Regulated Voltage" using filtered DC or unfiltered VRMS input voltage
• Synchronize with Wheelock SM, DSM or the Wheelock PS-24-8MC Power Supply with built-in sync protocol
• Adjustable Volume and Tone Control, Single Stroke or Vibrating Operation

Wheelock CH90-24MCCH-FW Ceiling Mount 24 VDC Chime Strobe, White, Frequency range 890Hz, Field Selectable Candela Settings of 15/30/75/95cd

Wheelock Series CH Chimes and Chime Strobes are ideal for hospitals and institutional applications. The appliances feature single stroke or vibrating operation.

Key Features
- Field selectable candela settings of 15/30/75/95cd
- Low current draw with temperature compensation to reduce power consumption and wiring costs
- Strobes produce 1 flash per second over the regulated voltage range
- 24 VDC with wide UL "Regulated Voltage" using filtered DC or unfiltered VRMS input voltage
- Synchronize with Wheelock SM, DSM or the Wheelock PS-24-8MC Power Supply with built-in sync protocol
- Adjustable Volume and Tone Control
- Single Stroke or Vibrating Operation
- Fast Installation with IN/OUT screw terminals using #12 to #18 AWG wires

Specifications
- Mounting Method: Ceiling
- Housing color: White
- Indoor/outdoor: Indoor
- Lettering: FIRE
- Housing material: UV stabilized plastic
- Voltage: 16 - 33V (DC or FWR)
- Operating Temperature: 33.8F to 120.2F (0C to 49C) maximum humidity of 93%
- Compliance and standards: UL/CSFM/FCC/ULC
- Lamp type: Xenon
- Candela settings: 15 cd/95 cd/30 cd/75 cd
- Current draw (DC): 0.065/0.105/0.189/0.249
- Lens color: Clear
- Lens material: Lexan
- Frequency response - min: 890 Hz
- Frequency response - max: 890 Hz
- Sound Level: 78 dBA
- Audible current: 0.022 mA
- Dimensions: 2.7"L x 7.26"H x 7.26"W
- Weight: 1.714 lb
